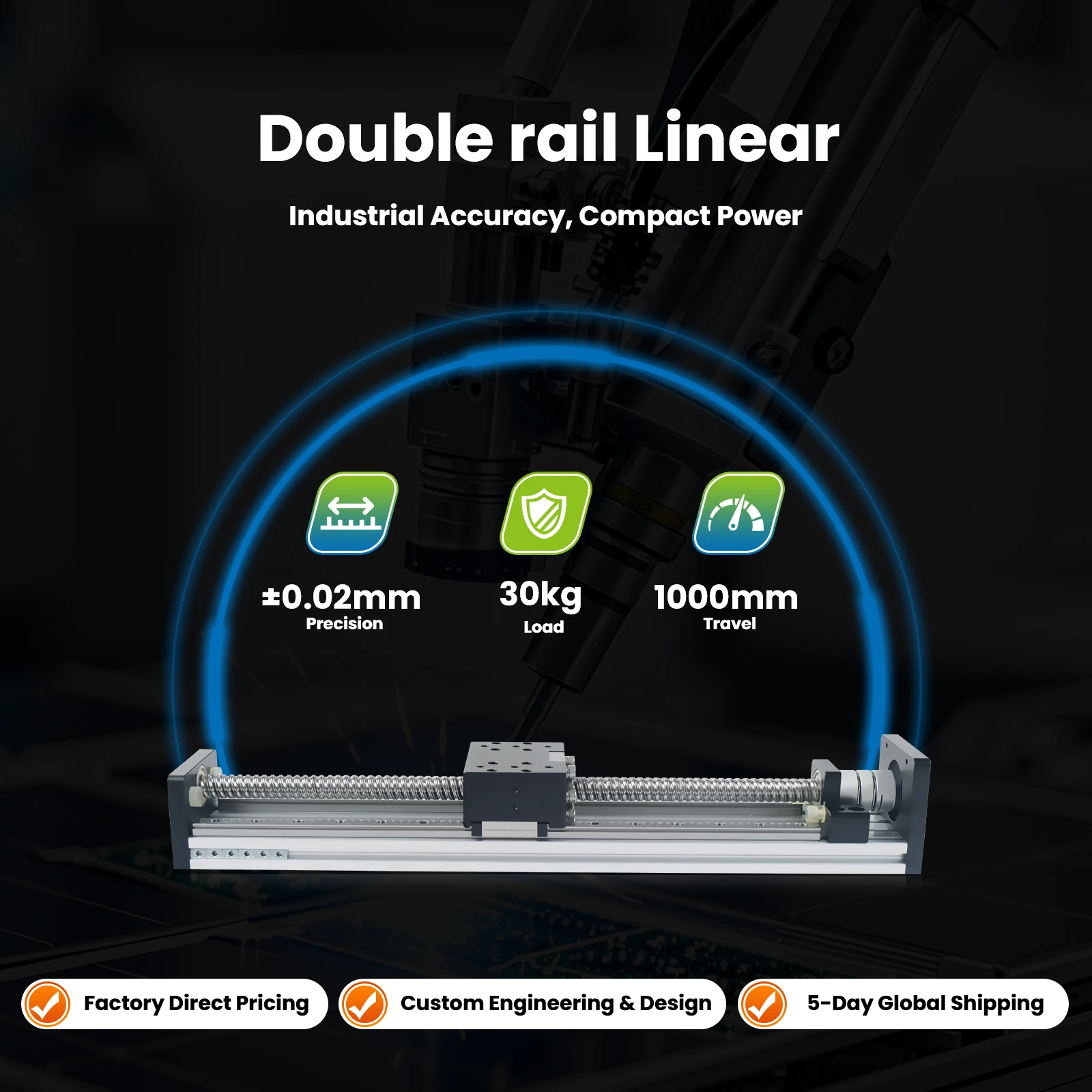

HMS80
Open Screw Linear Module
HMS80 open screw linear module with repeatability ±0.02/300 mm, max speed 175~700 mm/s, payload up to 25~30 kg, stroke 50~1000/50Pitch mm, designed for precision assembly and inspection automation.
Specifications
| Performance | |
|---|---|
| Repeatability | ±0.02/300 mm |

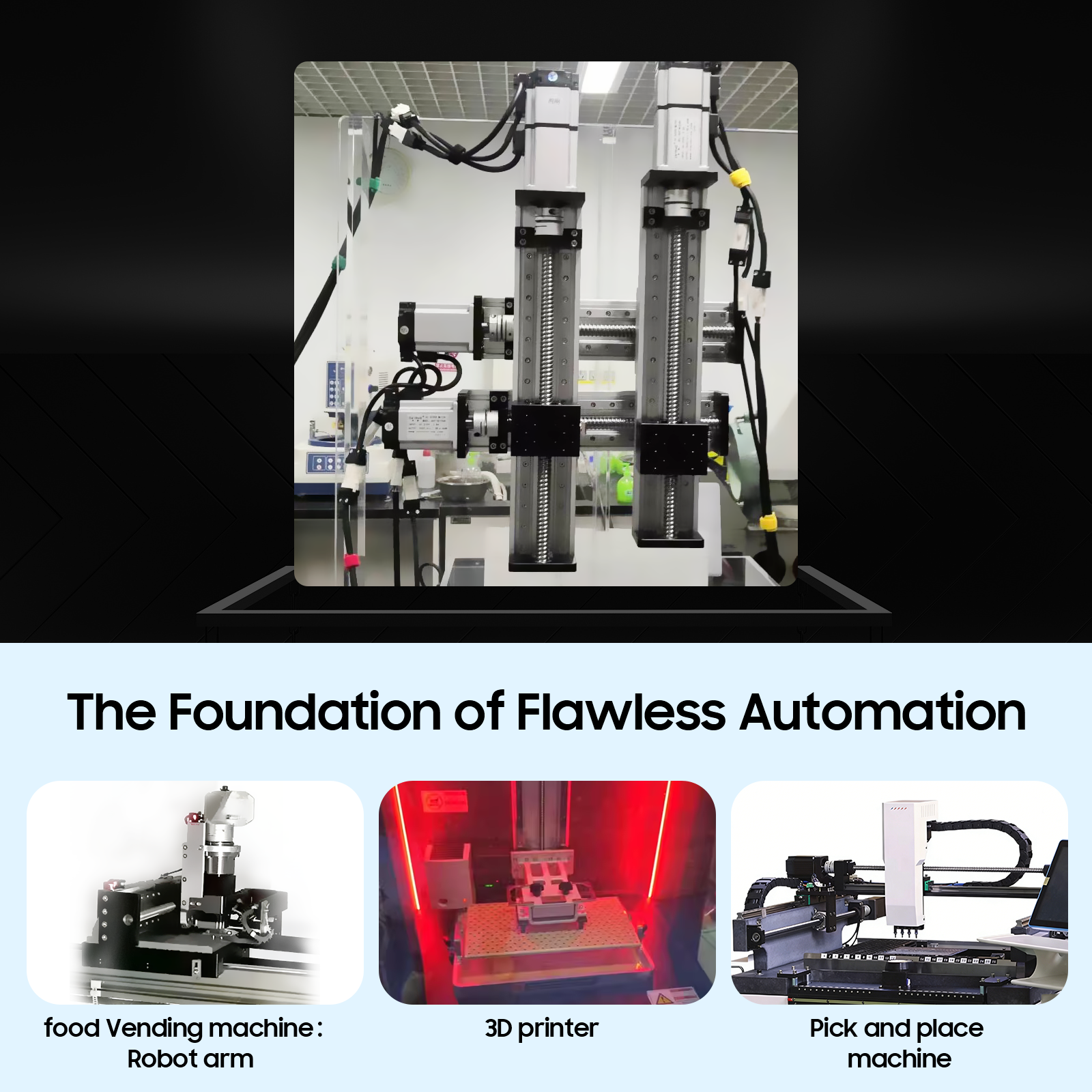

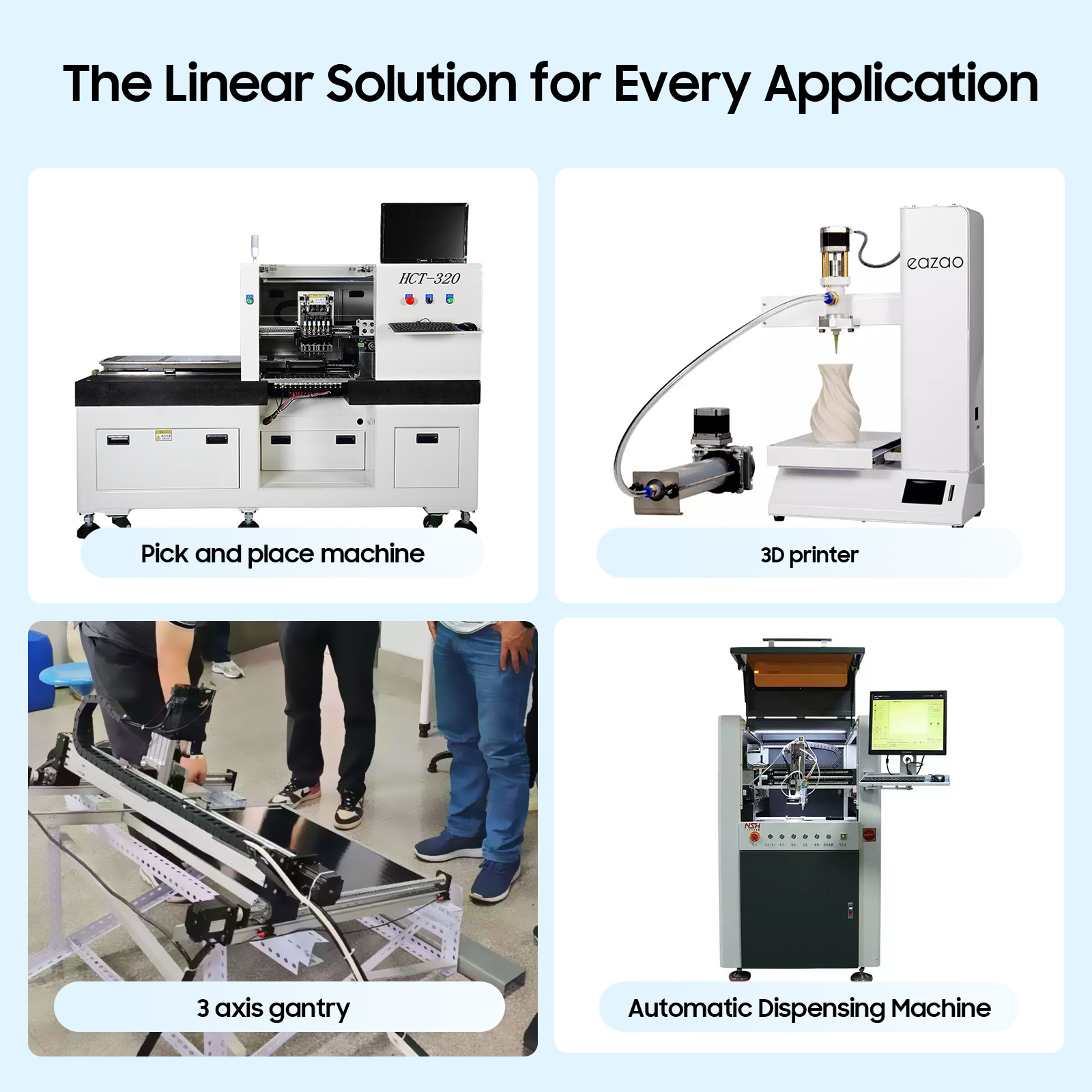

| Applications | |
|---|---|
| Heavy Material Handling & CNC Automation | CNC Machine Loading/Unloading: Automated transfer of workpieces up to 30kg for milling, lathe, and machining centers . |
| Precision Manufacturing & Electronics | SMT PCB Assembly: Accurate placement of heavy components (e.g., transformers, heat sinks) with ±0.03mm accuracy . |
| High-Accuracy Processing & Inspection | Laser Cutting/Engraving: Controlled motion for thick-metal fabrication (e.g., automotive chassis) with vibration-free stability . |
| Medical & Cleanroom Systems | Medical Imaging (CT/MRI): Precision sliding table control for clear imaging and patient positioning . |
Technical Downloads
Customization
Custom solutions based on speed and load requirements
Anti-rust treatment, high/low temperature, explosion-proof and vacuum compatibility
Bellows dust covers with expandable protection accessories
Multi-axis synchronization and custom program development
Request a Quote
