HMS40
Open Screw Linear Module

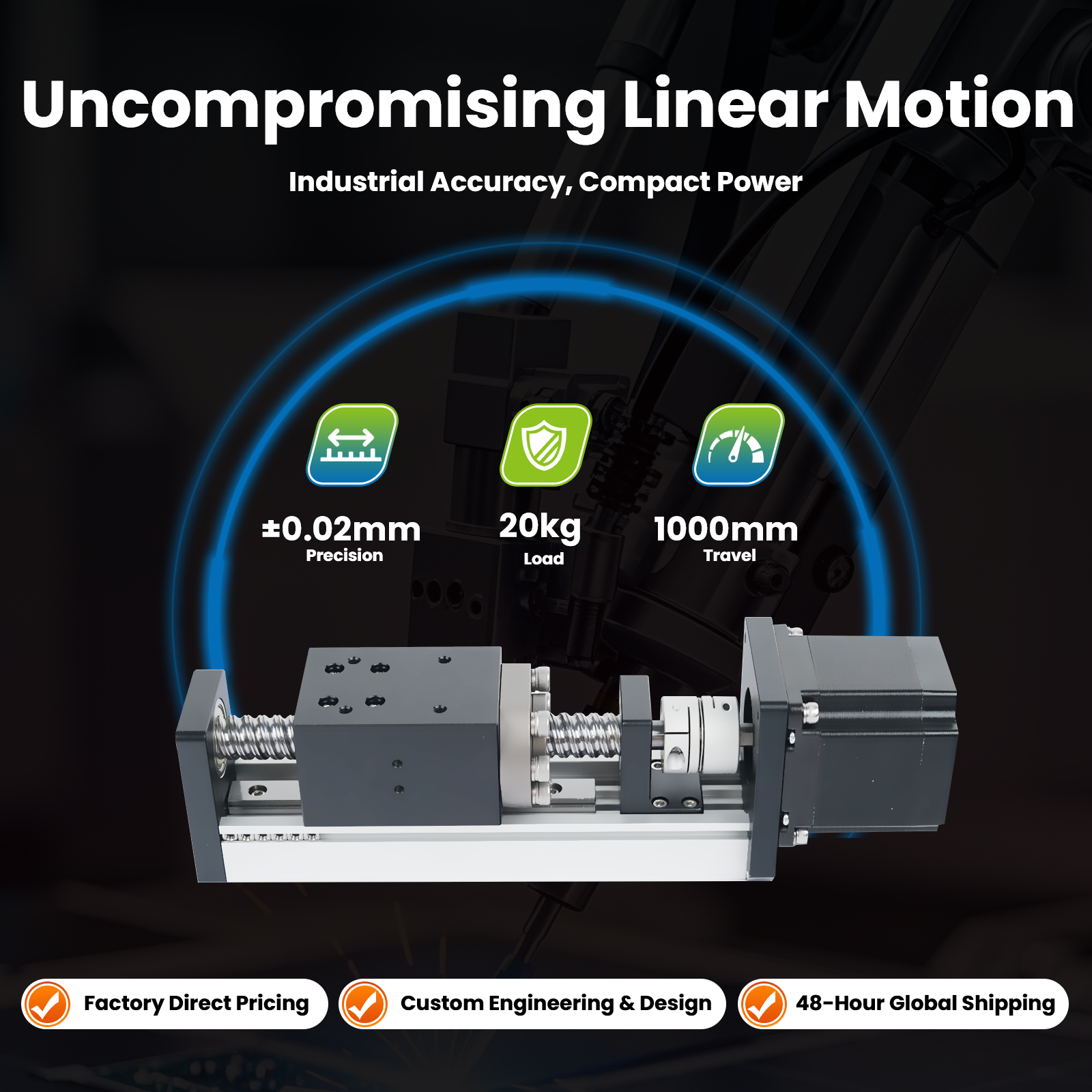

HMS40 open screw linear module with repeatability ±0.02/300 mm, max speed 175~700 mm/s, payload up to 15~20 kg, stroke 50~1000/(50)Pitch mm, designed for precision assembly and inspection automation.
Specifications
| Performance | |
|---|---|
| Repeatability | ±0.02/300 mm |
| Applications | |
|---|---|
| Precision Manufacturing & Assembly | Electronics PCB Handling: High-speed placement of SMD components and automated circuit testing with sub-millimeter accuracy . |
| Automated Material Handling | Robotic Pick-and-Place: Sorting and transfer of parts up to 20kg in logistics/packaging lines . |
| Quality Control & Testing | 3D Metrology: Movement of probes in coordinate measuring machines (CMMs) for dimensional inspection . |
| Medical & Laboratory Systems | Diagnostic Equipment: Slide positioning in microscopes and sample handling in DNA sequencers . |
| Advanced Processing | Laser Cutting/Engraving: Controlled motion for intricate metal/plastic fabrication (e.g., medical implants) . |
Technical Downloads
Customization
Custom solutions based on speed and load requirements
Anti-rust treatment, high/low temperature, explosion-proof and vacuum compatibility

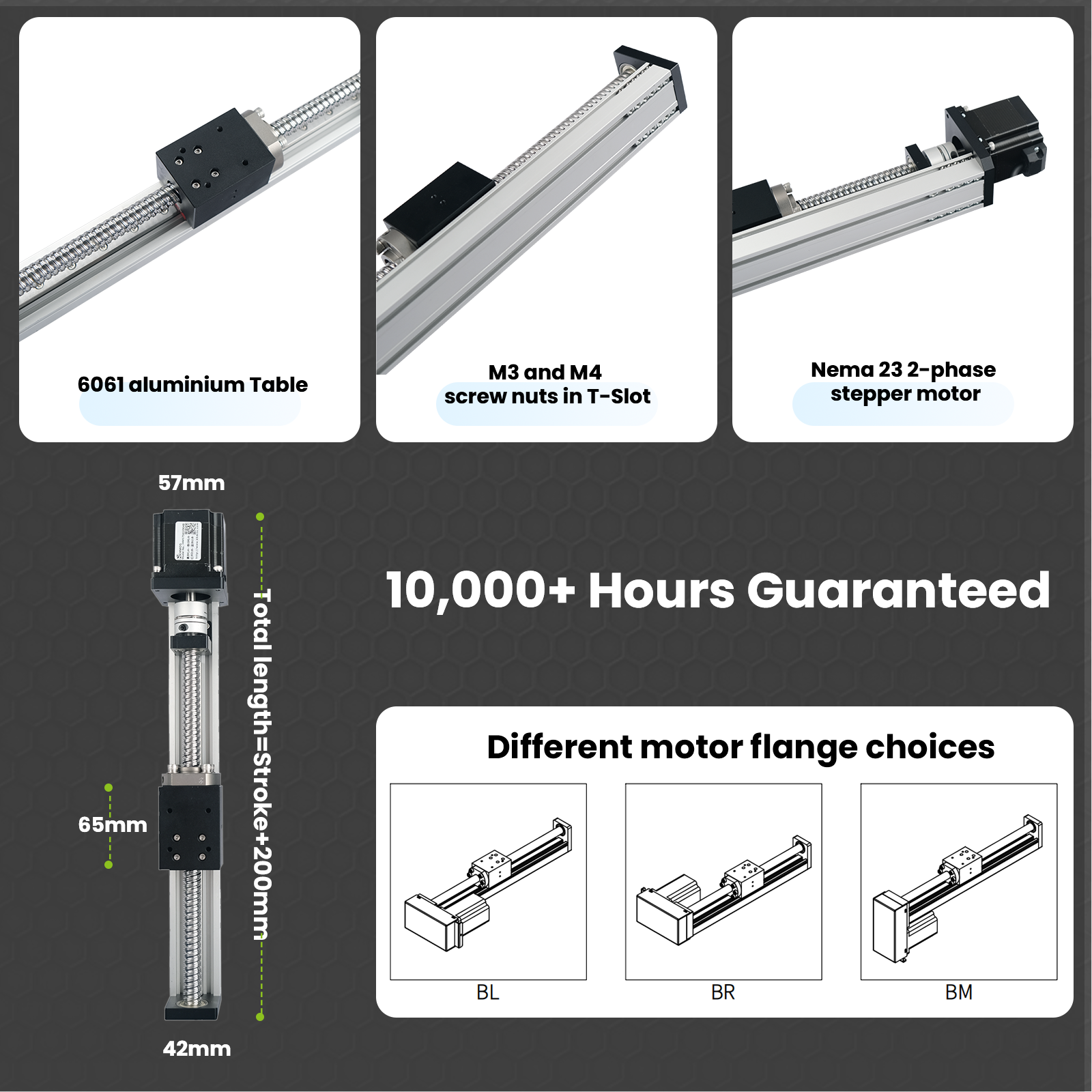

Bellows dust covers with expandable protection accessories
Multi-axis synchronization and custom program development
Request a Quote
