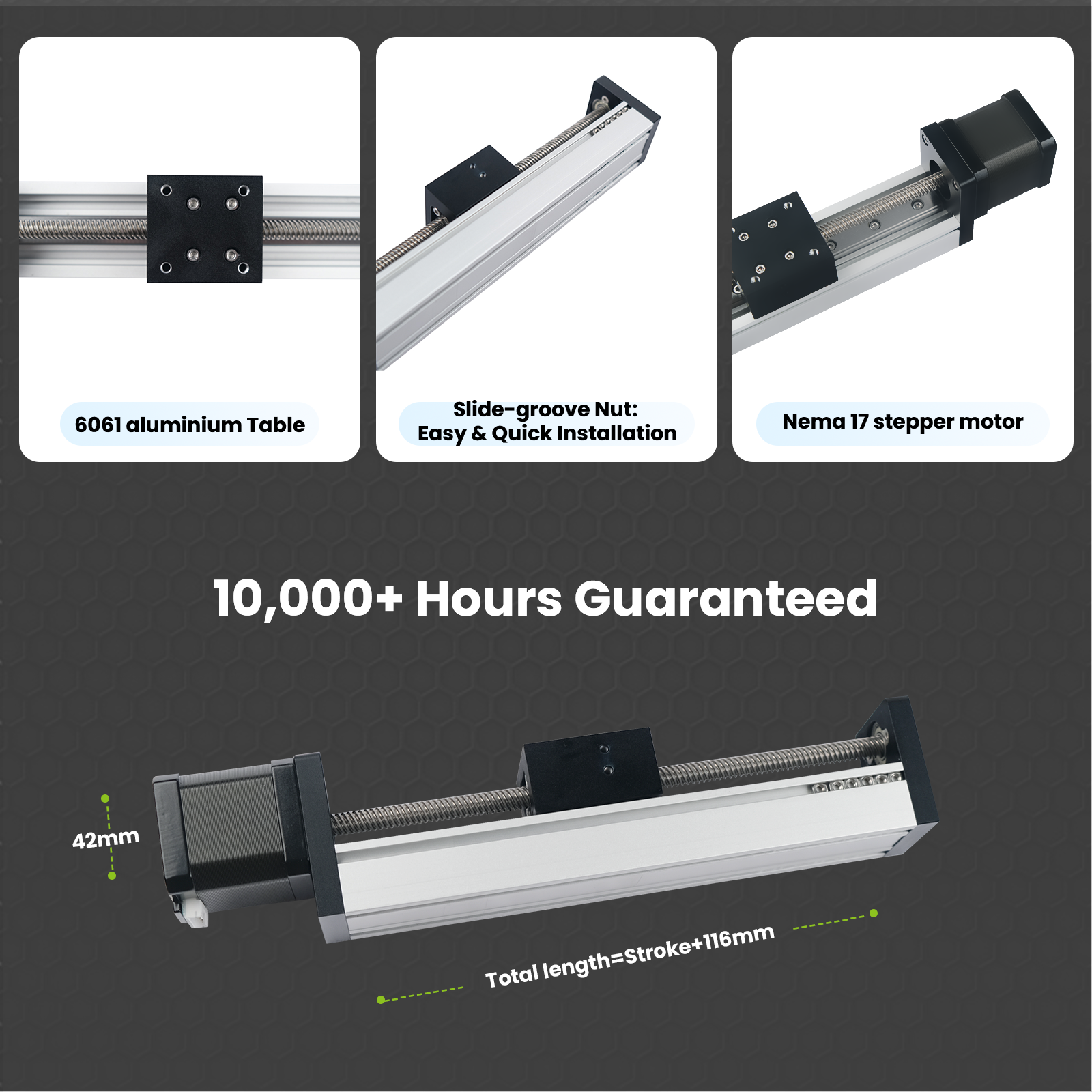

HMS40T(X)
Open Screw Linear Module
HMS40T(X) open screw linear module with repeatability ±0.02/300 mm, max speed 40~350 mm/s, payload up to 4~10 kg, stroke 50~400（600）/50 间隔 Pitch mm, designed for precision assembly and inspection automation.
Specifications
| Performance | |
|---|---|
| Repeatability | ±0.02/300 mm |

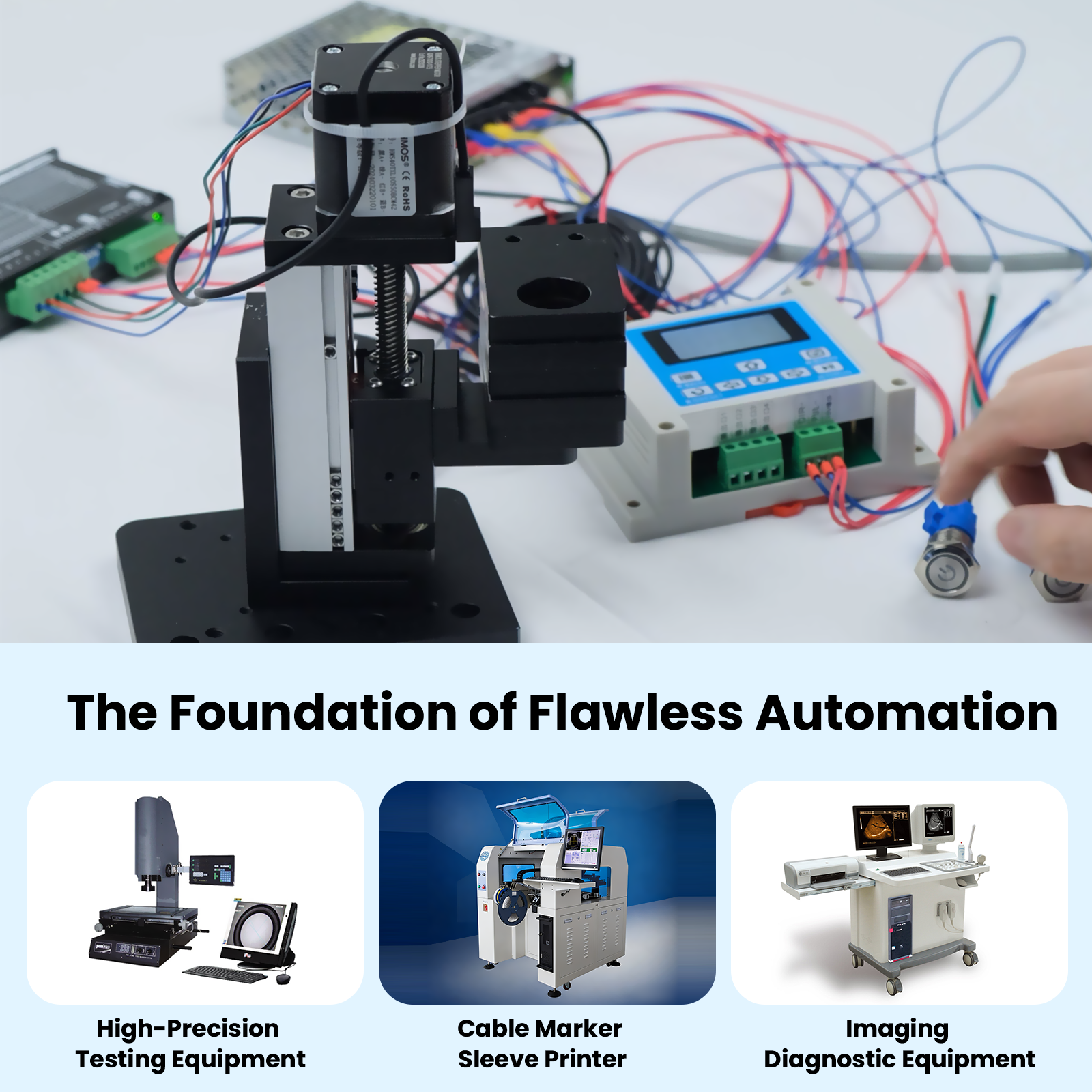

| Applications | |
|---|---|
| Electronics Manufacturing | PCB Assembly & Testing: Precise placement of components (e.g., SMD chips) and automated circuit testing . |
| Medical & Laboratory Automation | Diagnostic Equipment: Sample handling in blood analyzers and slide positioning in microscopes . |
| Light Industrial Automation | 3D Printing: Z-axis control in desktop/industrial printers for layer precision . |
| Optics & Precision Instruments | Lens/Sensor Alignment: Adjusting optical components in camera modules or laser collimators . |
Technical Downloads
Customization
Custom solutions based on speed and load requirements
Anti-rust treatment, high/low temperature, explosion-proof and vacuum compatibility
Bellows dust covers with expandable protection accessories
Multi-axis synchronization and custom program development
Request a Quote
