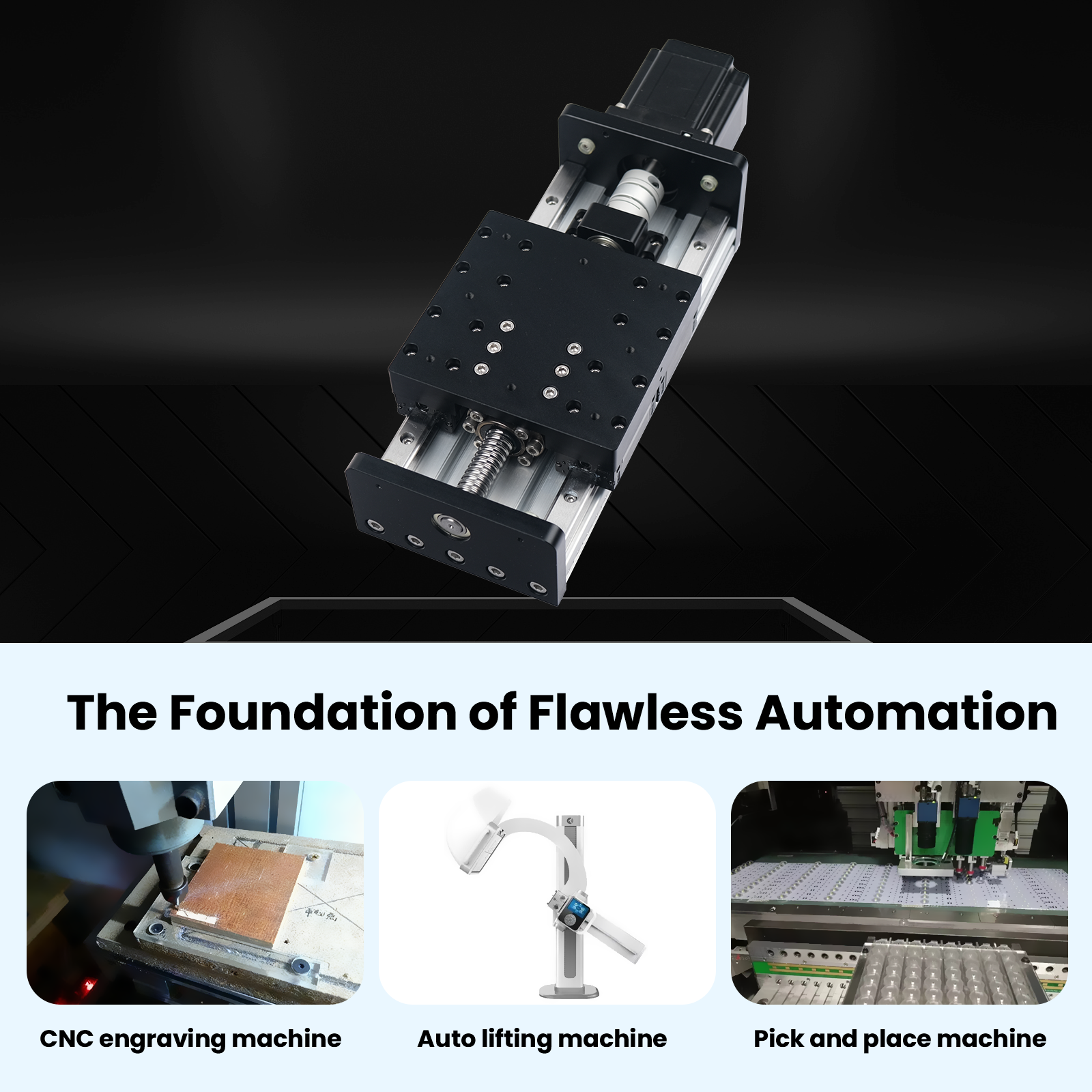

HMS150
Open Screw Linear Module

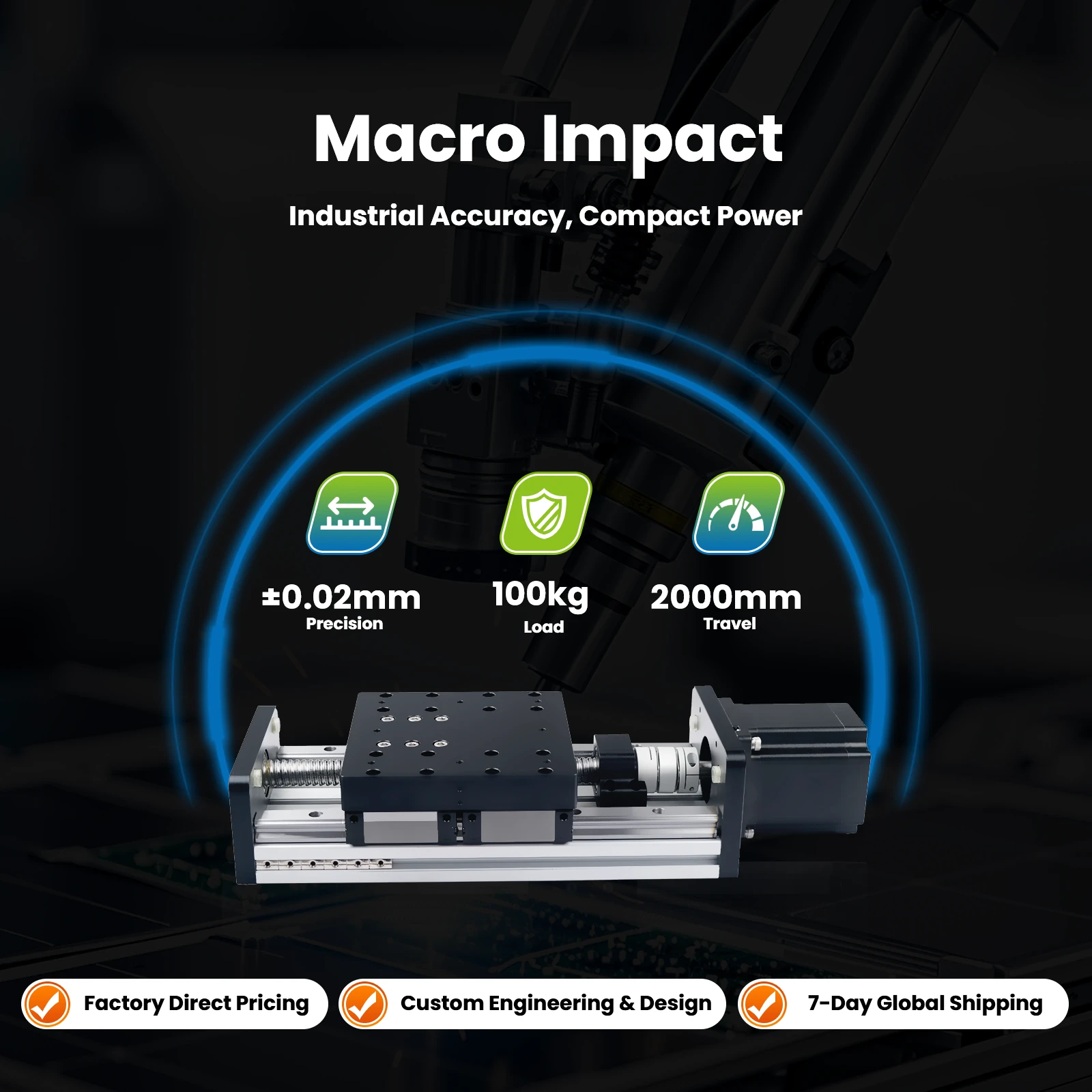

HMS150 open screw linear module with repeatability ±0.02/300 mm, max speed 175~800 mm/s, payload up to 80~100 kg, stroke 50~2000/50Pitch mm, designed for precision assembly and inspection automation.
Specifications
| Performance | |
|---|---|
| Repeatability | ±0.02/300 mm |
| Applications | |
|---|---|
| Heavy Machinery & CNC Automation | CNC Machine Loading/Unloading: Automated transfer of large workpieces (e.g., engine blocks, turbine housings) up to 100kg for milling, turning, and machining centers . |
| Automotive & Aerospace Assembly | Chassis Welding Systems: Robotic welding arms for vehicle frames, aircraft fuselages, and structural components demanding 2000mm travel and 100kg payload support . |
| High-Power Processing & Cutting | Large-Format Laser Cutting: Precision motion for thick-metal fabrication (e.g., steel plates up to 50mm) in industrial cutting systems . |
| Heavy Logistics & Warehousing | Automated Palletizing: Stacking crates, machinery parts, or automotive components up to 100kg in smart factories and e-commerce hubs . |
| Energy & Infrastructure | Wind Turbine Assembly: Positioning gearboxes, rotor hubs, and tower sections during manufacturing . |
Technical Downloads
Customization
Custom solutions based on speed and load requirements
Anti-rust treatment, high/low temperature, explosion-proof and vacuum compatibility
Bellows dust covers with expandable protection accessories
Multi-axis synchronization and custom program development
Request a Quote
