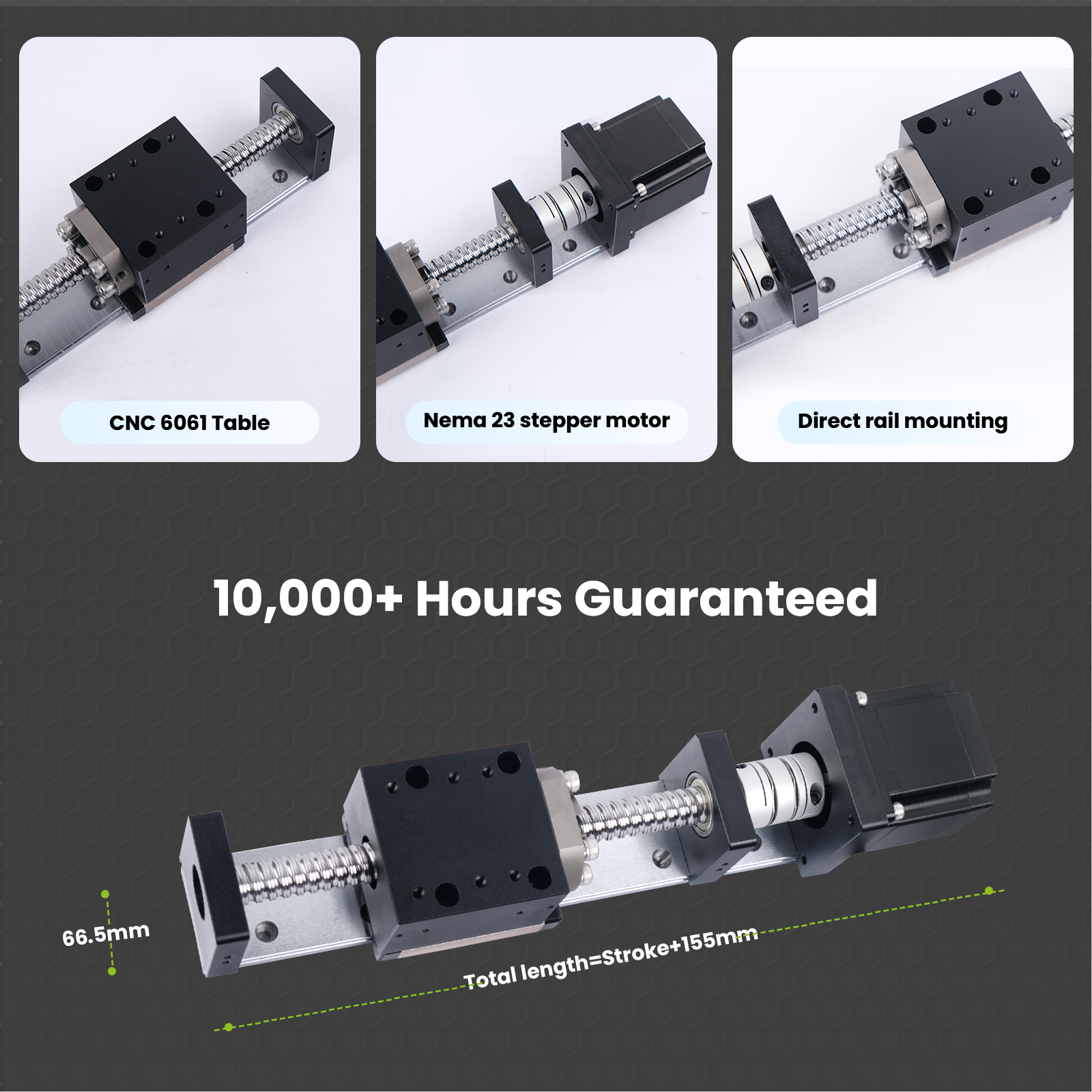

HMS60W
Open Screw Linear Module

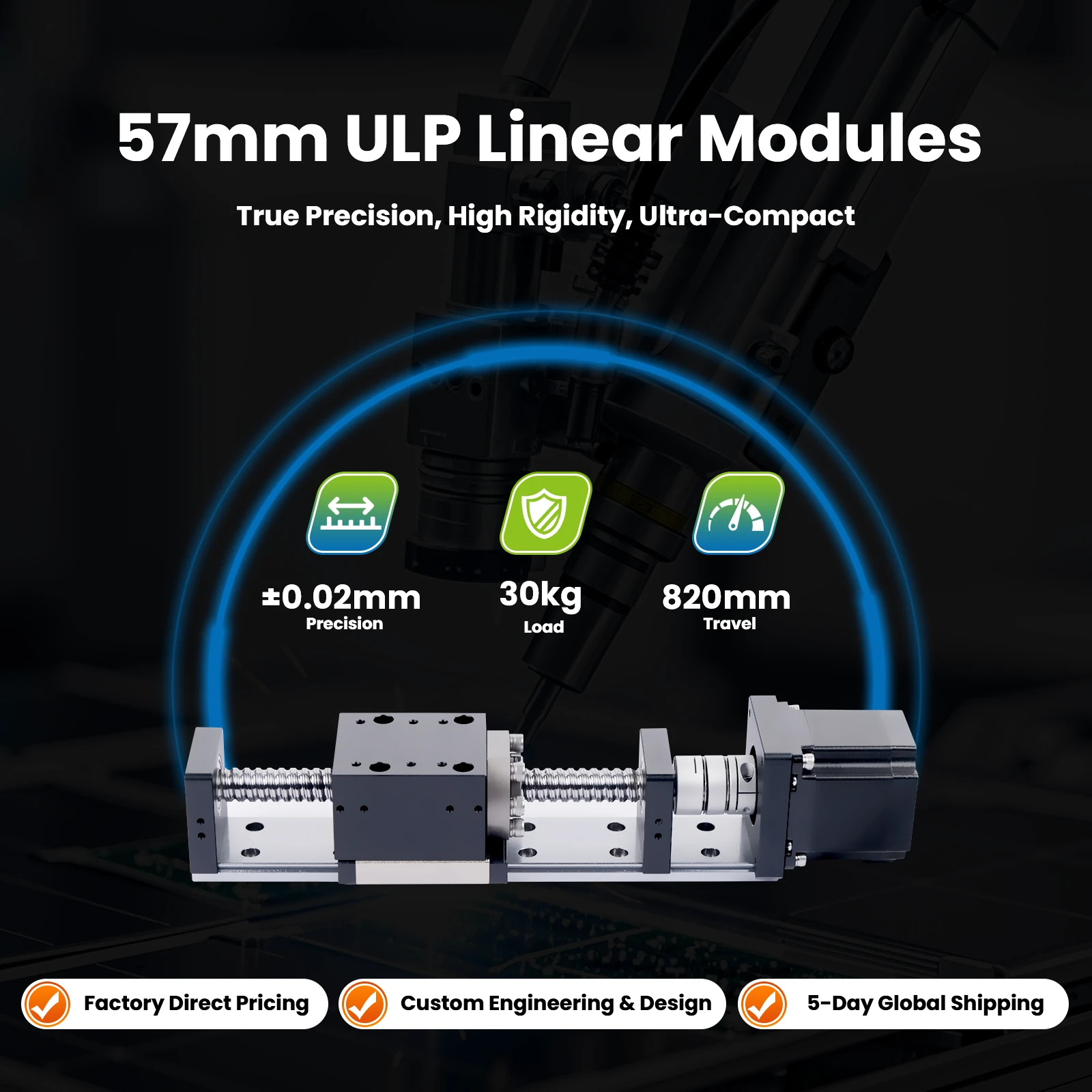

HMS60W open screw linear module with repeatability ±0.02/300 mm, max speed 175~700 mm/s, payload up to 25~30 kg, stroke 60~820/40Pitch mm, designed for precision assembly and inspection automation.
Specifications
| Performance | |
|---|---|
| Repeatability | ±0.02/300 mm |

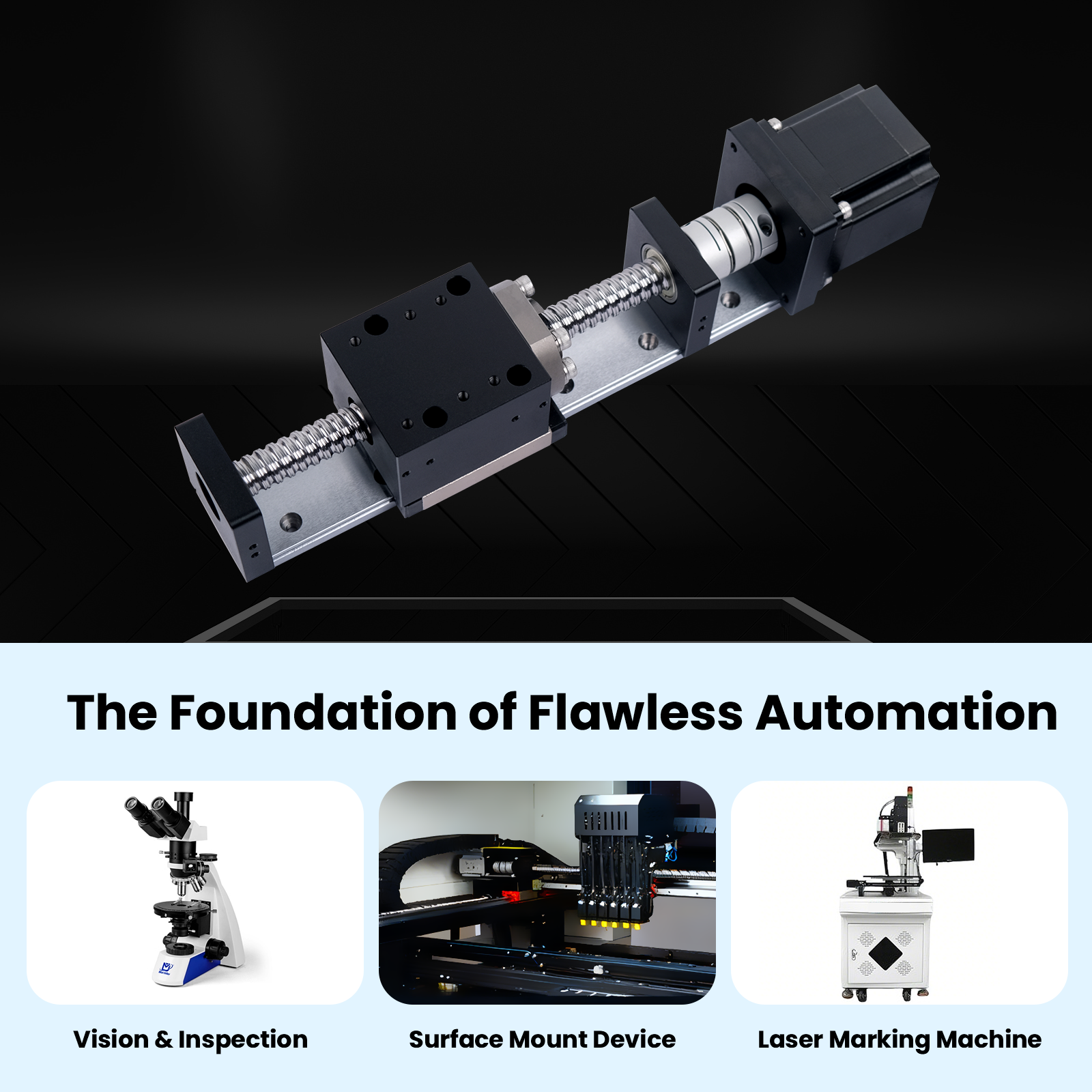

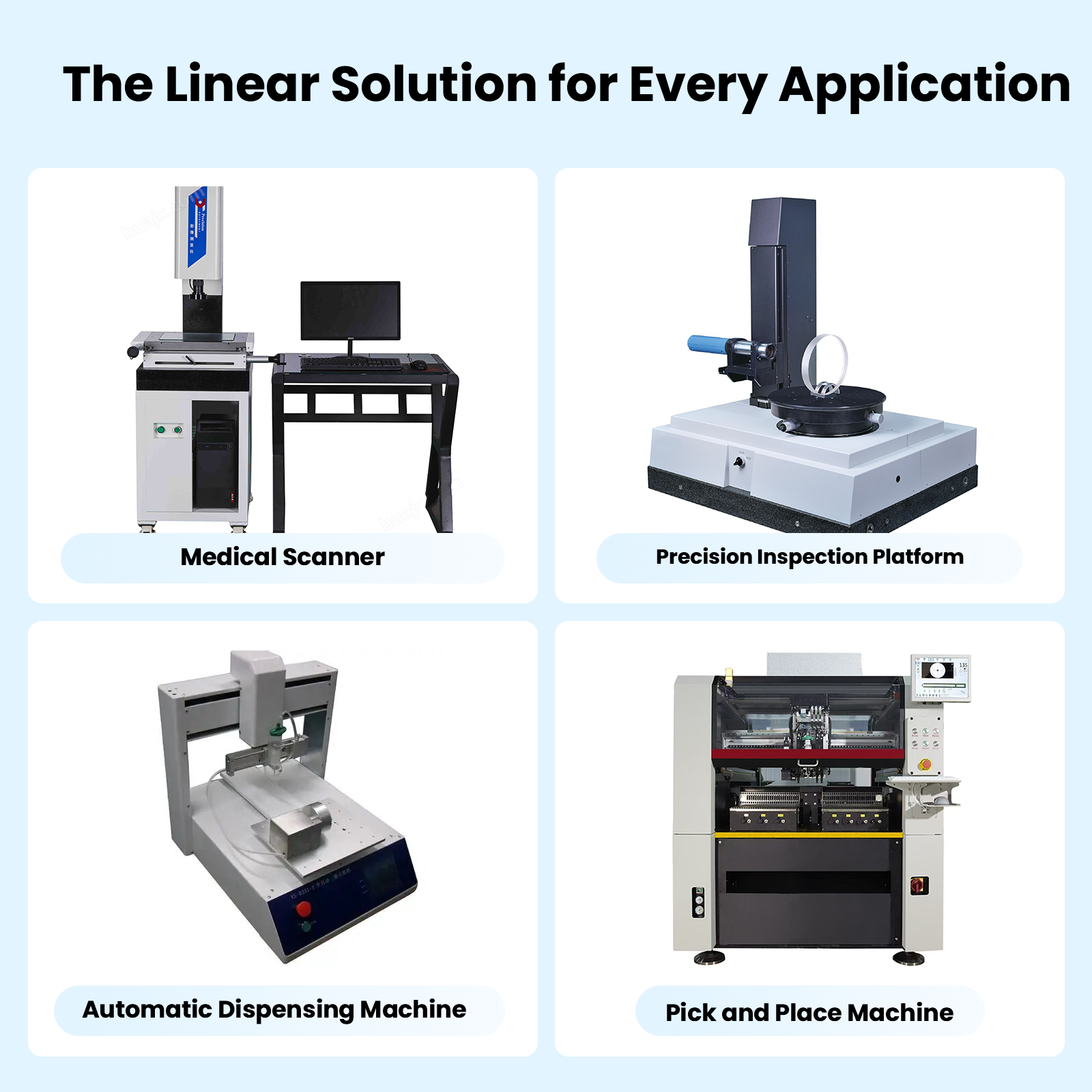

| Applications | |
|---|---|
| Heavy Material Handling & Logistics | CNC Machine Loading/Unloading: Automated transfer of workpieces up to 30kg for milling, lathe, or machining centers . |
| Precision Manufacturing & Assembly | SMT PCB Handling: Accurate placement of heavy components (e.g., transformers, heat sinks) on circuit boards . |
| Quality Inspection & Metrology | 3D Coordinate Measuring (CMM): Precision movement of probes for dimensional verification of industrial parts . |
| High-Power Processing Equipment | Laser Cutting/Engraving: Controlled motion for thick-metal fabrication (e.g., chassis, enclosures) . |
| Cleanroom & Medical Device Production | Medical Imaging Systems: Positioning heavy components in CT/MRI machines with vibration-free stability . |
Technical Downloads
Customization
Custom solutions based on speed and load requirements
Anti-rust treatment, high/low temperature, explosion-proof and vacuum compatibility
Bellows dust covers with expandable protection accessories
Multi-axis synchronization and custom program development
Request a Quote
