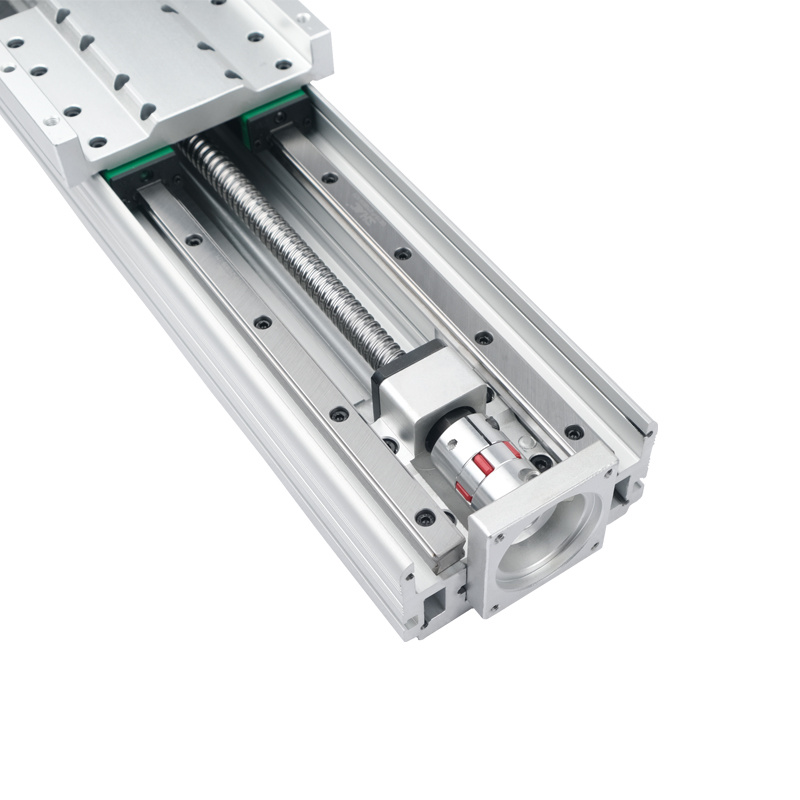

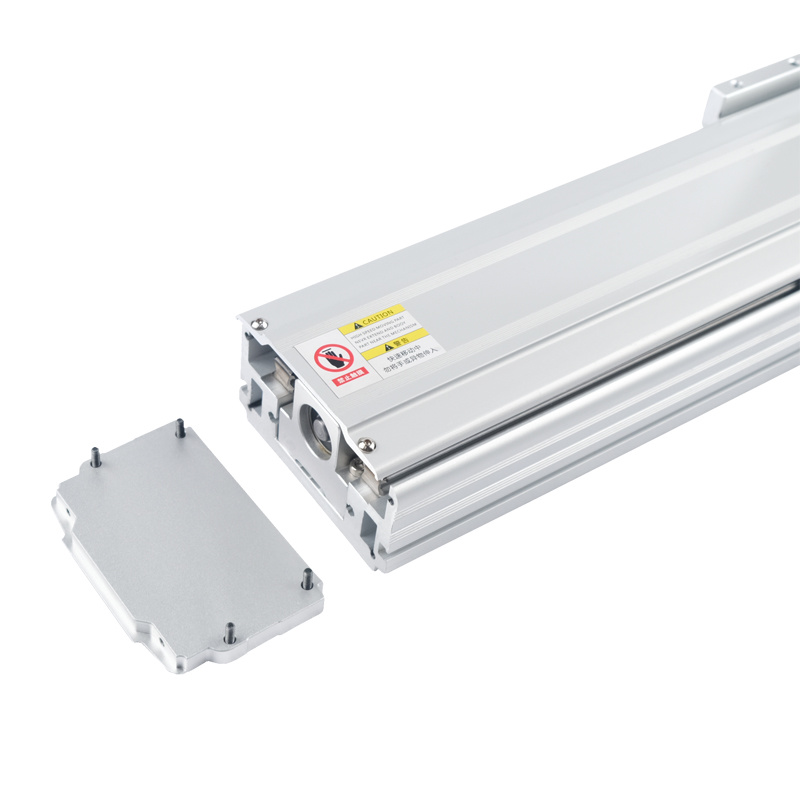

HYS170
Semi-closed Screw Module
HYS170 semi-closed screw module with repeatability ±0.02/300 mm, max speed 200~1000 mm/s, payload up to 80~120 kg, stroke 50~2000/50Pitch mm, designed for cost-sensitive automation lines.
Specifications
| Performance | |
|---|---|
| Repeatability | ±0.02/300 mm |
| Applications | |
|---|---|
| Heavy Machinery & CNC Automation | Large-Part CNC Handling: Automated transfer of massive workpieces (e.g., engine blocks, turbine housings) up to 120kg for milling, turning, and machining centers . |
| Automotive & Aerospace Assembly | Heavy Chassis Welding: Robotic welding arms for vehicle frames and aircraft fuselages, supporting 120kg payloads across 2000mm travel . |
| High-Power Laser Processing | Thick-Plate Laser Cutting: Precision motion for cutting steel plates up to 50mm thickness in industrial systems . |
| Harsh-Environment Logistics & Testing | Automated Palletizing: Stacking machinery parts or automotive components up to 120kg in warehouses . |
Technical Downloads
Customization
Custom solutions based on speed and load requirements
Anti-rust treatment, high/low temperature, explosion-proof and vacuum compatibility
Bellows dust covers with expandable protection accessories
Multi-axis synchronization and custom program development
Request a Quote
