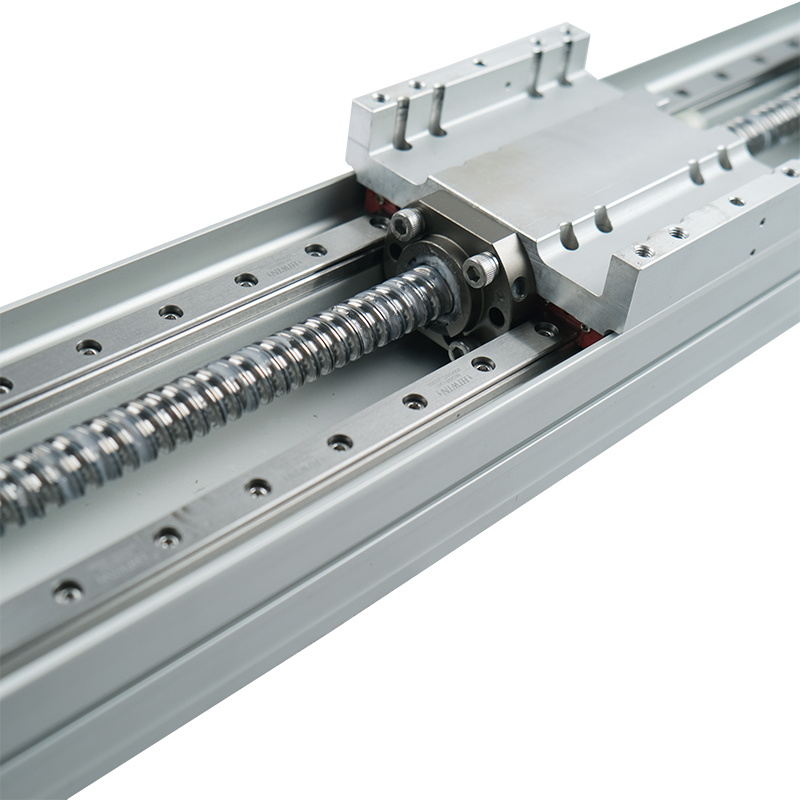

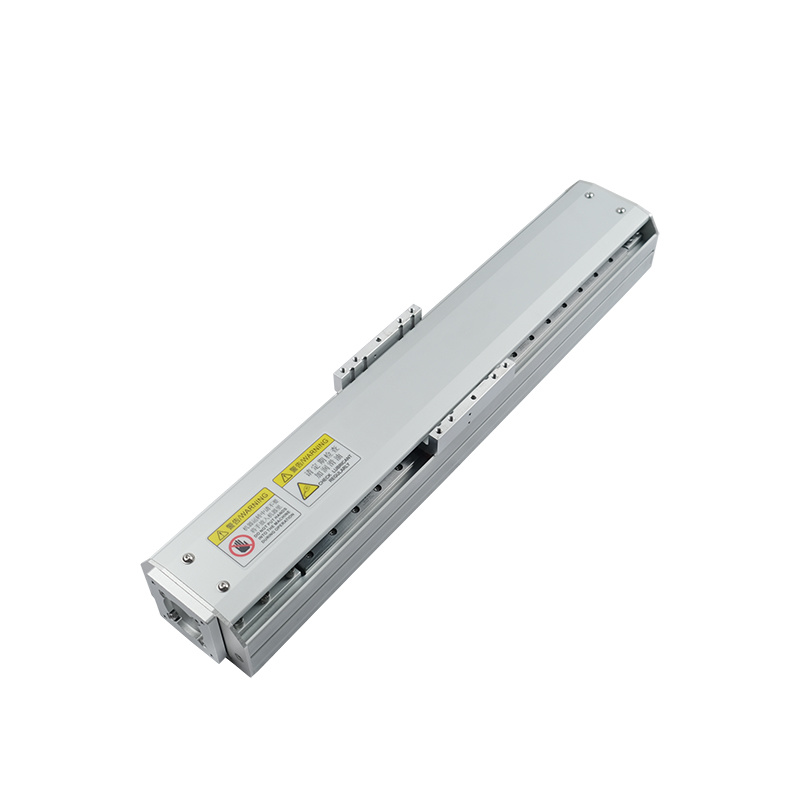

HYS100
Semi-closed Screw Module
HYS100 semi-closed screw module with repeatability ±0.02/300 mm, max speed 200~750 mm/s, payload up to 30~50 kg, stroke 50~1000/50Pitch mm, designed for cost-sensitive automation lines.
Specifications
| Performance | |
|---|---|
| Repeatability | ±0.02/300 mm |
| Applications | |
|---|---|
| CNC & Heavy Machinery Automation | CNC Machine Loading/Unloading: Automated transfer of large workpieces (e.g., engine blocks, metal fixtures) up to 50kg for milling and machining centers . |
| High-Accuracy Electronics Manufacturing | SMT PCB Assembly: Placement of heavy components (transformers, heatsinks) with ± 0.03mm repeatability in cleanroom-compatible environments . |
| Automated Logistics & Material Handling | Palletizing Robots: Stacking crates or automotive parts up to 50kg in smart warehouses, with 1000mm stroke enabling wide-range operation . |
| Medical & Precision Instrumentation | Medical Imaging (CT/MRI): Stable sliding tables for patient positioning with vibration-free motion, critical for diagnostic accuracy . |
Technical Downloads
Customization
Custom solutions based on speed and load requirements
Anti-rust treatment, high/low temperature, explosion-proof and vacuum compatibility
Bellows dust covers with expandable protection accessories
Multi-axis synchronization and custom program development
Request a Quote
