HYS135
Semi-closed Screw Module
HYS135 semi-closed screw module with repeatability ±0.02/300 mm, max speed 200~750 mm/s, payload up to 50~80 kg, stroke 50~1500/50Pitch mm, designed for cost-sensitive automation lines.
Specifications
| Performance | |
|---|---|
| Repeatability | ±0.02/300 mm |
| Applications | |
|---|---|
| Heavy CNC & Robotic Automation | CNC Machine Loading/Unloading: Automated transfer of large workpieces (e.g., engine blocks, aerospace components) up to 80kg for milling, turning, and machining centers . |
| Medical & Cleanroom Systems | Medical Imaging (CT/MRI): Stable sliding tables for patient positioning requiring 50kg vertical load support and zero-vibration interference . |
| Industrial Automation & Inspection | Large-Part Metrology (CMM): Movement of probes for dimensional verification of automotive/aerospace components up to 80kg . |
| Harsh-Environment Applications | Metal Stamping & Forging: Die positioning in high-impact presses protected by semi-enclosed covers against debris and dust . |
Technical Downloads
Customization
Custom solutions based on speed and load requirements
Anti-rust treatment, high/low temperature, explosion-proof and vacuum compatibility
Bellows dust covers with expandable protection accessories
Multi-axis synchronization and custom program development
Request a Quote
Related Products
HYS220Semi-closed Screw Module
HYS220 semi-closed screw module with repeatability ±0.02/300 mm, max speed 200~1200 mm/s, payload up to 80~200 kg, stroke 50~2500/50Pitch mm, designed for cost-sensitive automation lines.
HYS75Semi-closed Screw Module
HYS75 semi-closed screw module with repeatability ±0.02/300 mm, max speed 200~750 mm/s, payload up to 20~35 kg, stroke 50~1000/50Pitch mm, designed for cost-sensitive automation lines.

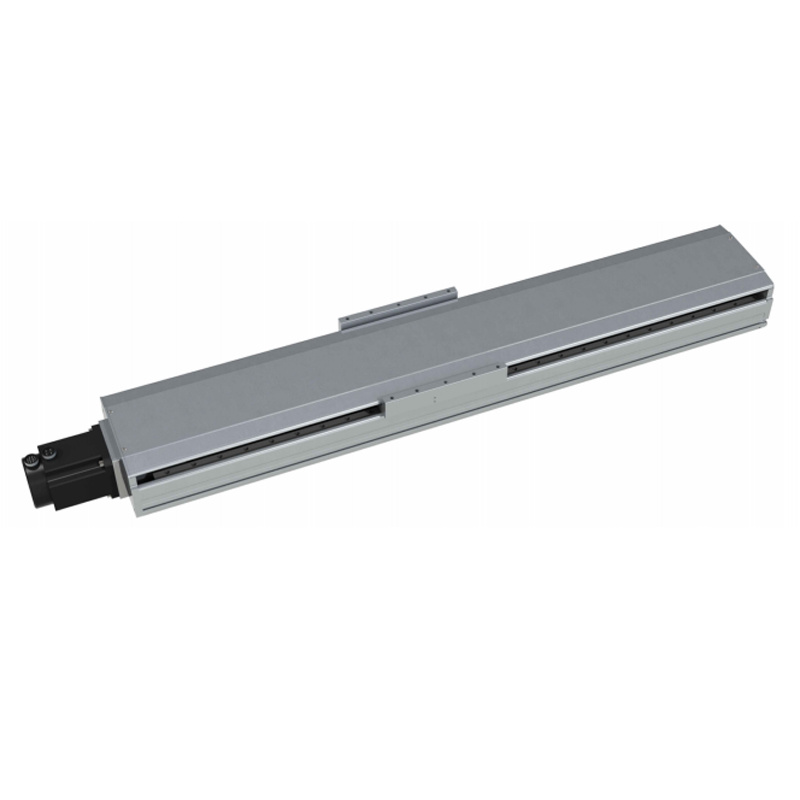

HYS270Semi-closed Screw Module
