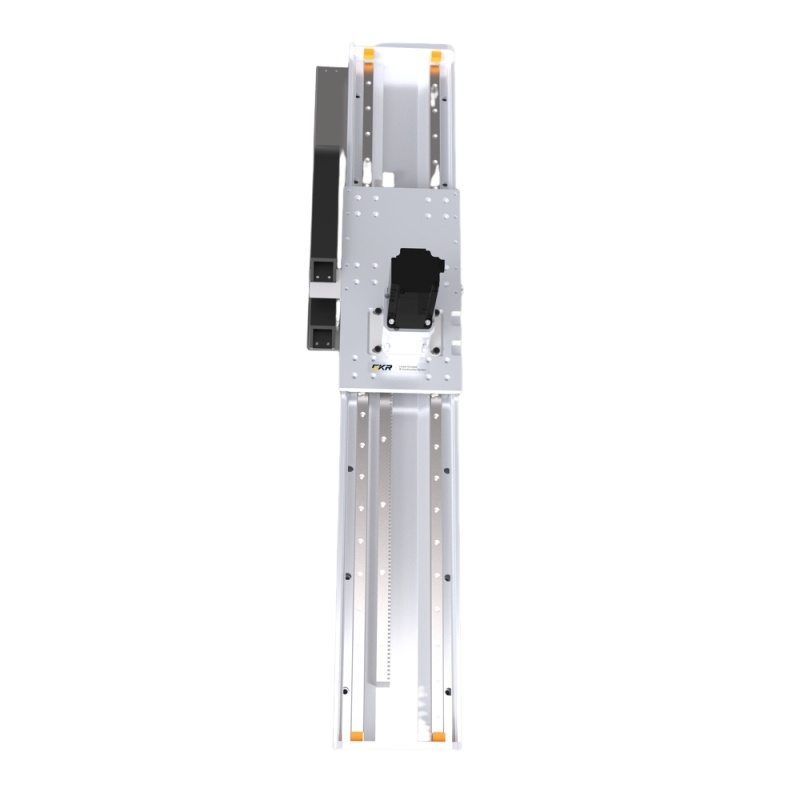

HYC220
Rack & Pinion Module
HYC220 rack & pinion module with repeatability ±0.02/300 mm, max speed 650~2200 mm/s, payload up to 100~300 kg, stroke 900~5500/100Pitch mm, designed for ultra-long stroke heavy-load applications.
Specifications
| Performance | |
|---|---|
| Repeatability | ±0.02/300 mm |
| Applications | |
|---|---|
| Material Handling & Logistics Automation | Heavy Palletizing Robots: High-speed stacking of industrial machinery, automotive components, or cargo (up to 300kg) in warehouses, optimized for long-stroke efficiency (5500mm) . |
| Construction & Infrastructure Automation | Bridge Inspection Robotics: Deployment of sensors/robotic arms for structural monitoring across long-span bridges (5500mm+ travel) . |
| Stage & Heavy-Duty Entertainment Systems | Concert Rigging Platforms: Movement of lighting, screens, or stage sets (300kg+) with 5500mm travel flexibility and low-noise servo performance . |
Technical Downloads
Customization
Custom solutions based on speed and load requirements
Anti-rust treatment, high/low temperature, explosion-proof and vacuum compatibility
Bellows dust covers with expandable protection accessories
Multi-axis synchronization and custom program development
Request a Quote
