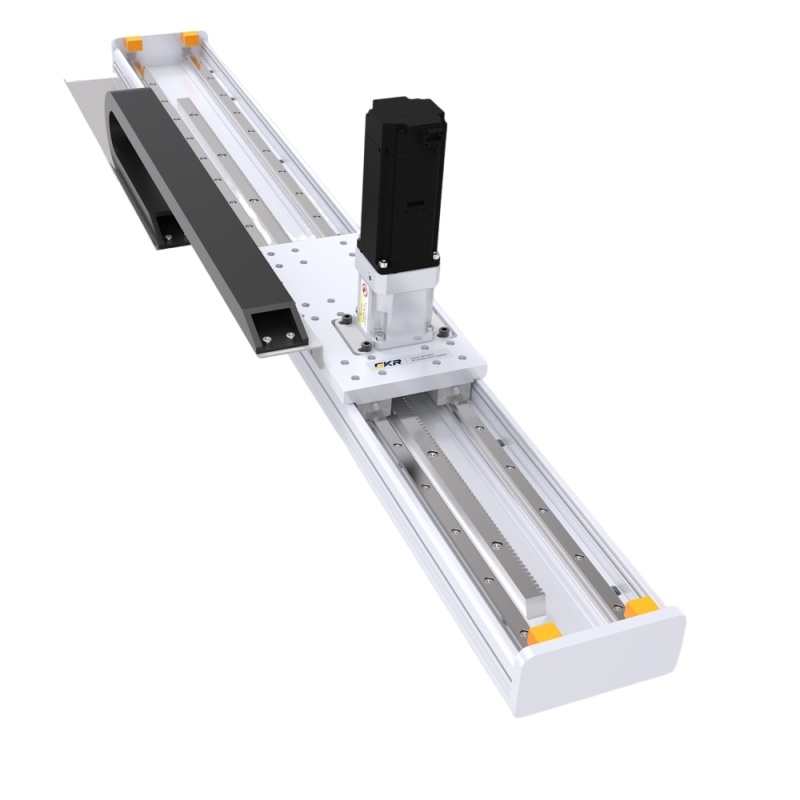

HYC140
Rack & Pinion Module
HYC140 rack & pinion module with repeatability ±0.02/300 mm, max speed 500~1650 mm/s, payload up to 70~200 kg, stroke 900~3500/100Pitch mm, designed for ultra-long stroke heavy-load applications.
Specifications
| Performance | |
|---|---|
| Repeatability | ±0.02/300 mm |
| Applications | |
|---|---|
| Large-Scale Industrial Automation | Gantry Robot Systems: Multi-axis CNC cutting/welding of automotive frames, aircraft parts, or ship hulls with 3500mm travel, 200kg payload, and servo-controlled accuracy. |
| Material Handling & Logistics | Warehouse Palletizing Robots: High-speed stacking of heavy cargo (up to 200kg) with long-stroke flexibility (3500mm) in large distribution centers. |
| Aerospace & Heavy Machinery | Aircraft Wing Assembly: Positioning and alignment of large structural components using 1.5M rack stability and servo precision. |
| Stage & Entertainment Systems | Concert/Theater Rigging: Movement of heavy lighting, screens, or stage sets (200kg+) with smooth, low-vibration motion and 3500mm travel range. |
| Infrastructure & Construction | Large Industrial Door Automation: Sliding gates or hangar doors requiring long-stroke robustness and dust-proof resilience. |
Technical Downloads
Customization
Custom solutions based on speed and load requirements
Anti-rust treatment, high/low temperature, explosion-proof and vacuum compatibility
Bellows dust covers with expandable protection accessories
Multi-axis synchronization and custom program development
Request a Quote
