Stepper Driver Series
HM860DA
Stepper Driver

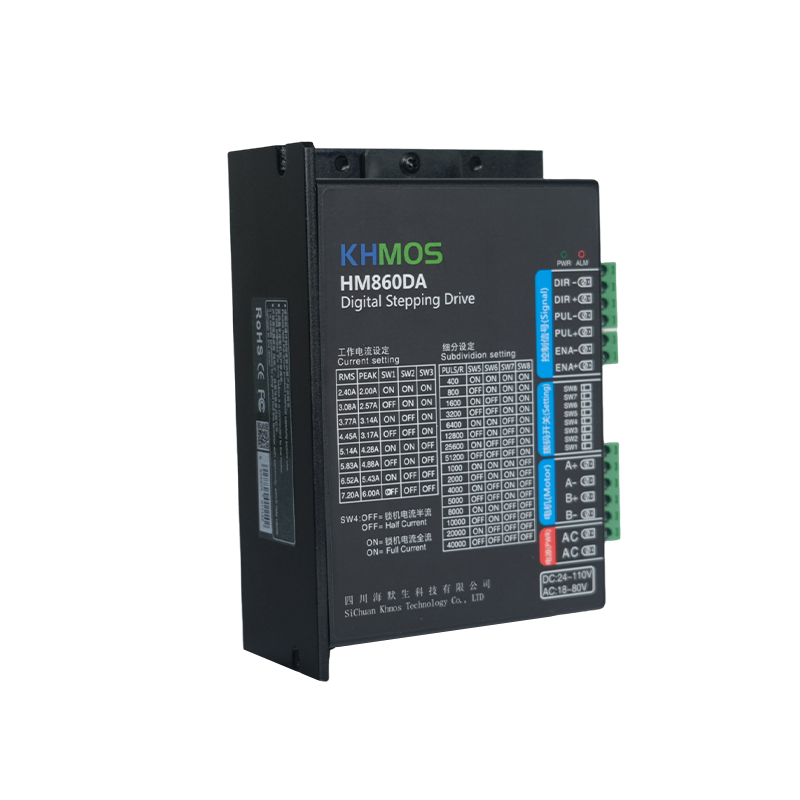

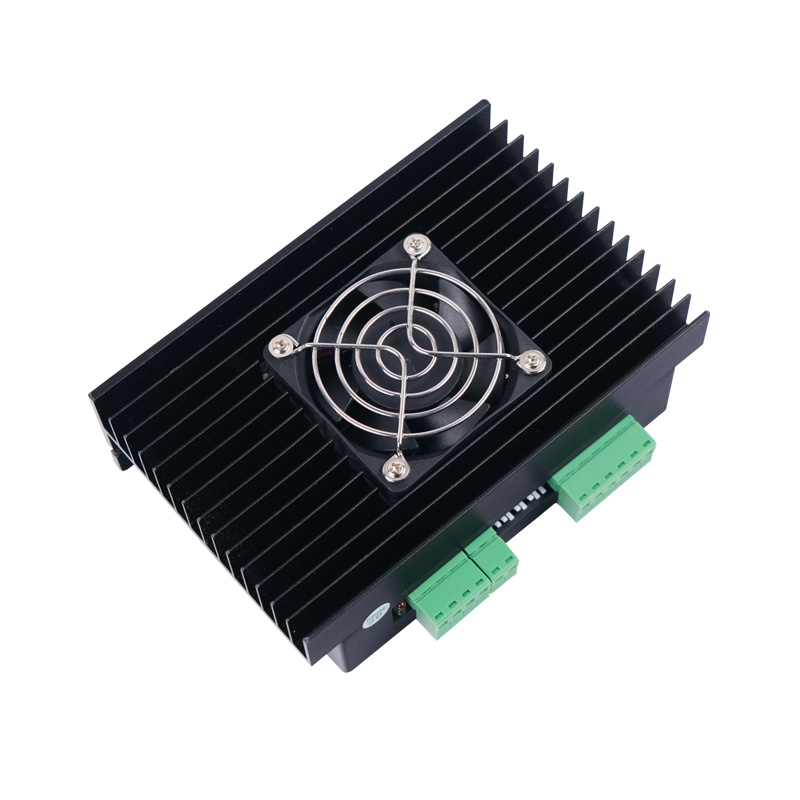

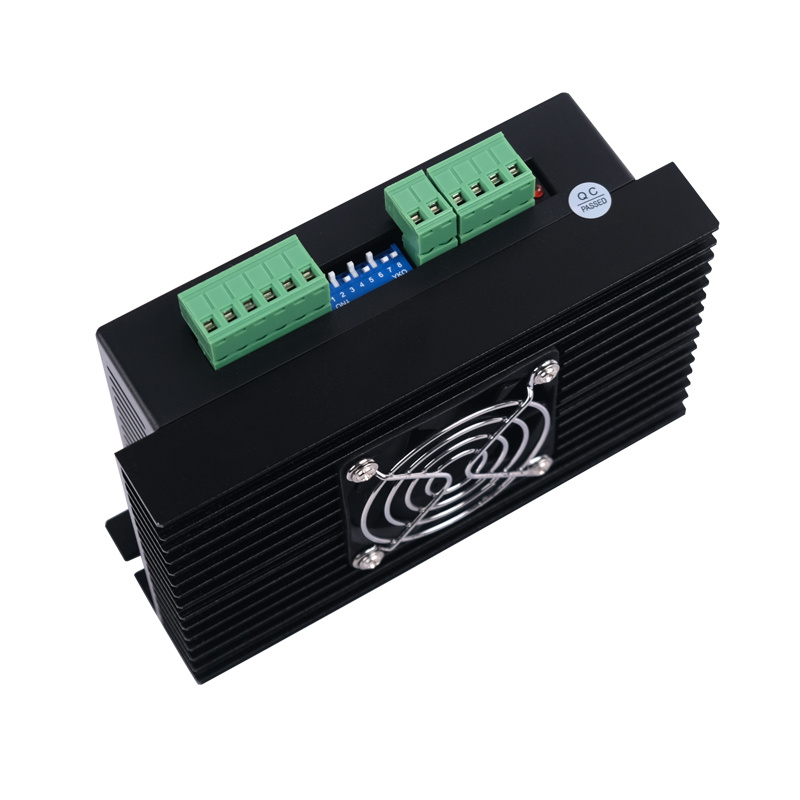

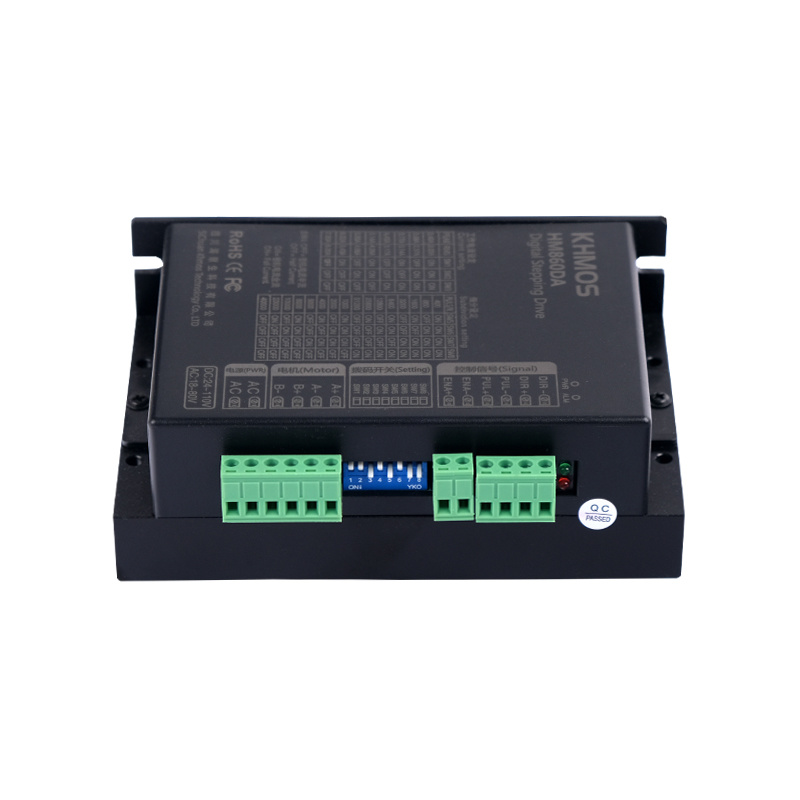

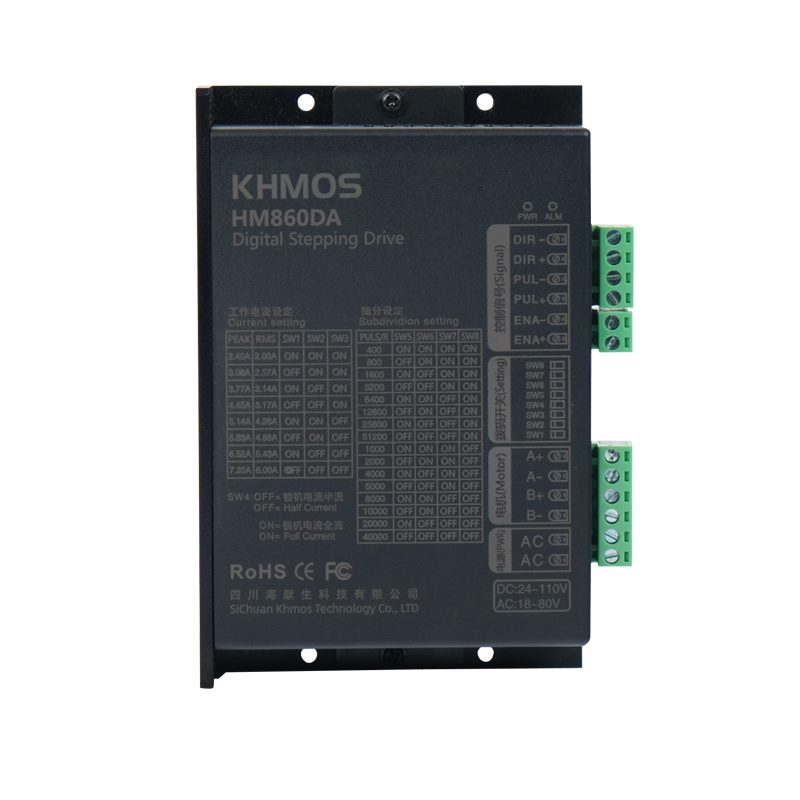

HM860DA stepper driver, designed for precise stepper motor control.
Specifications
| Specifications | |
|---|---|
| Motor Frame | Nema 34 and below the various types of two-phase stepping motor |
| Supply Voltage | 24~110V DC 18~80 AC |
| Rated Current | 7.2 |
| Current Range | 2.4A |
| Max Resolution | 40000 steps/R |
| Max Frequency | 200KPPS |
| Microstep Settings | 8 |
| Dimensions | 143 ×48 ×97MM |
| Net Weight | 0.8kg |
Technical Downloads
Customization
Speed Customization
Custom solutions based on speed and load requirements
Color / Environment
Anti-rust treatment, high/low temperature, explosion-proof and vacuum compatibility
Dust Protection
Bellows dust covers with expandable protection accessories
Software Customization
Multi-axis synchronization and custom program development
