Stepper Driver Series
HM3522A
Stepper Driver

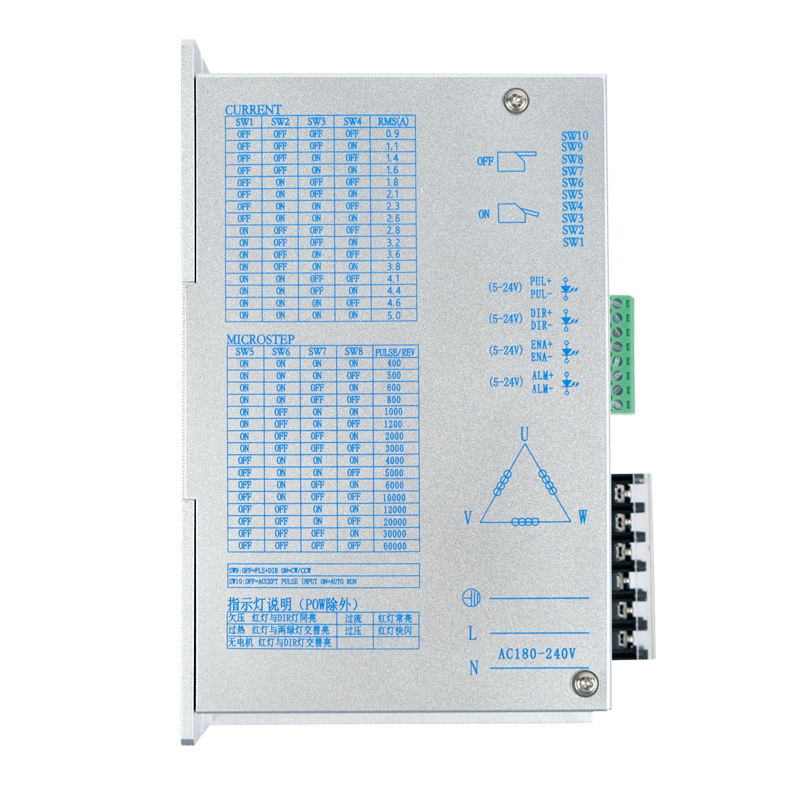

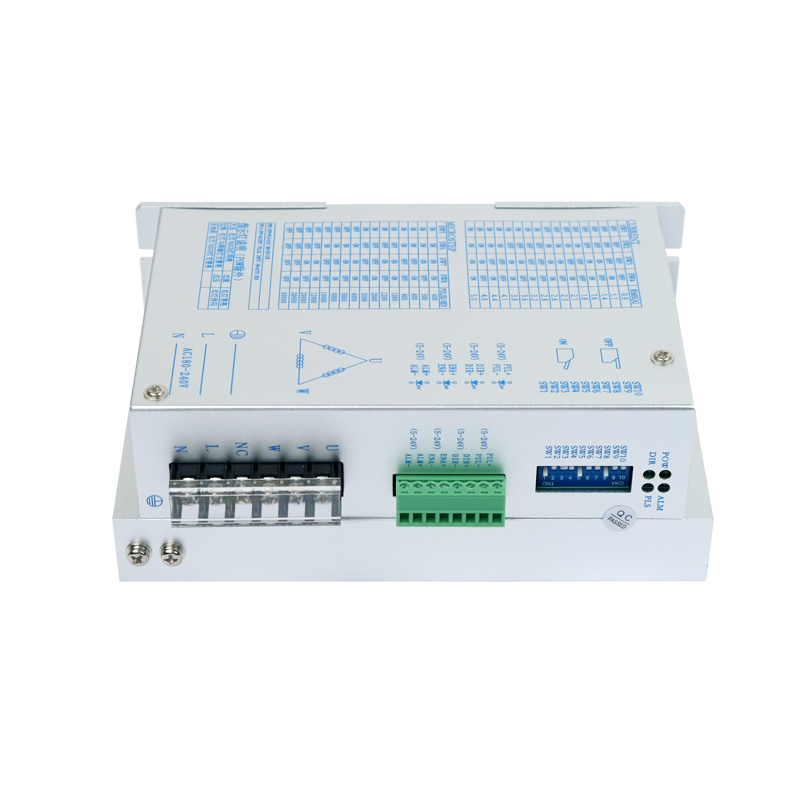

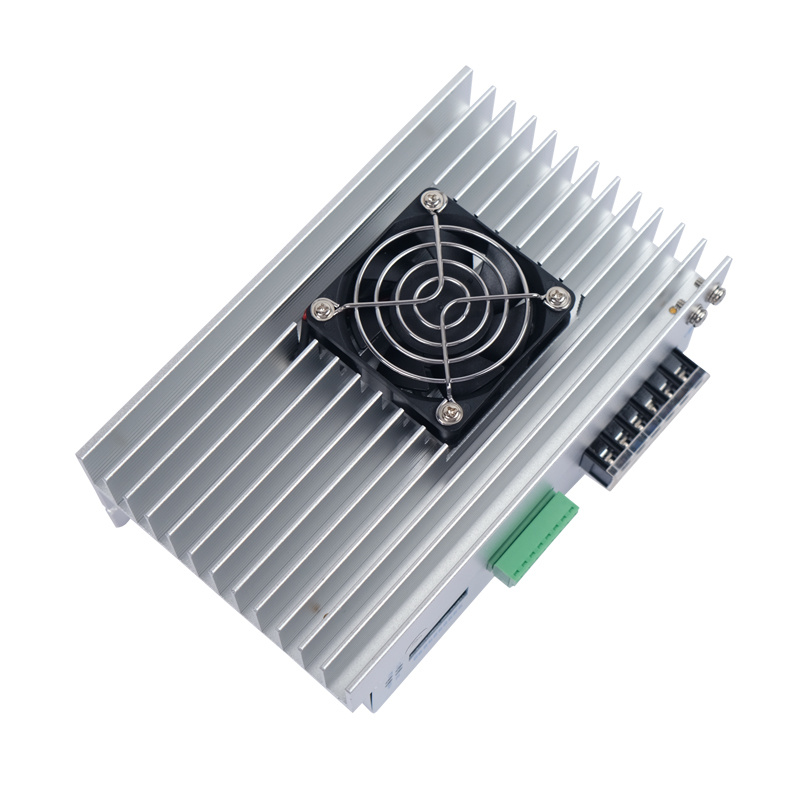

HM3522A stepper driver, designed for precise stepper motor control.
Specifications
| Specifications | |
|---|---|
| Motor Frame | Nema 34 and below the various types of 3-phase stepping motor |
| Supply Voltage | AC180-240V |
| Rated Current | 5.0 |
| Current Range | 0.9A |
| Max Resolution | 60000 steps/R |
| Max Frequency | 200KPPS |
| Microstep Settings | 8 |
| Dimensions | 178 ×67 ×108MM |
| Net Weight | 1.2kg |
Technical Downloads
Customization
Speed Customization
Custom solutions based on speed and load requirements
Color / Environment
Anti-rust treatment, high/low temperature, explosion-proof and vacuum compatibility
Dust Protection
Bellows dust covers with expandable protection accessories
Software Customization
Multi-axis synchronization and custom program development
Request a Quote
