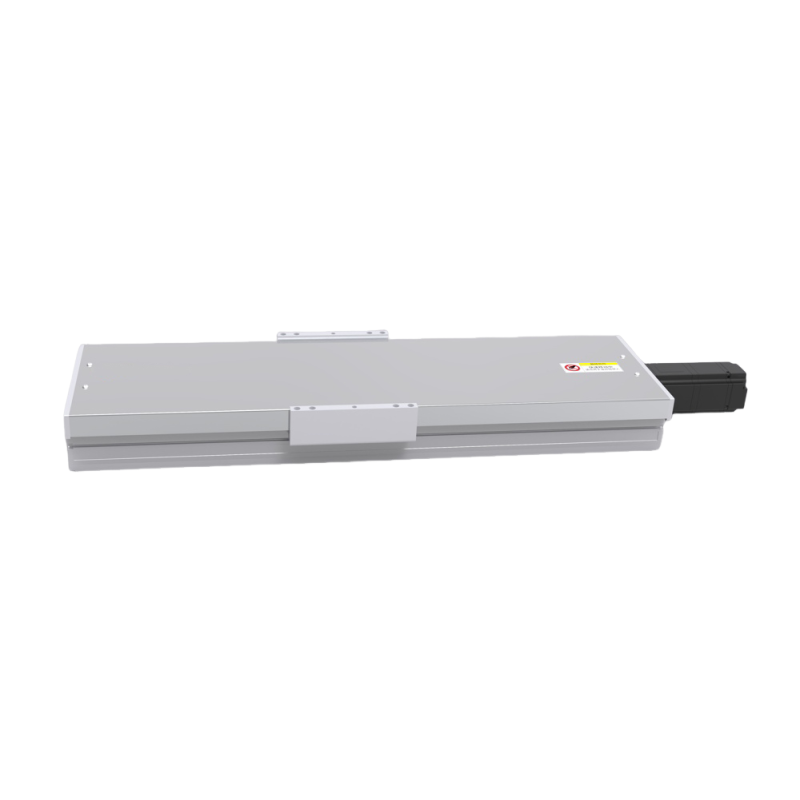

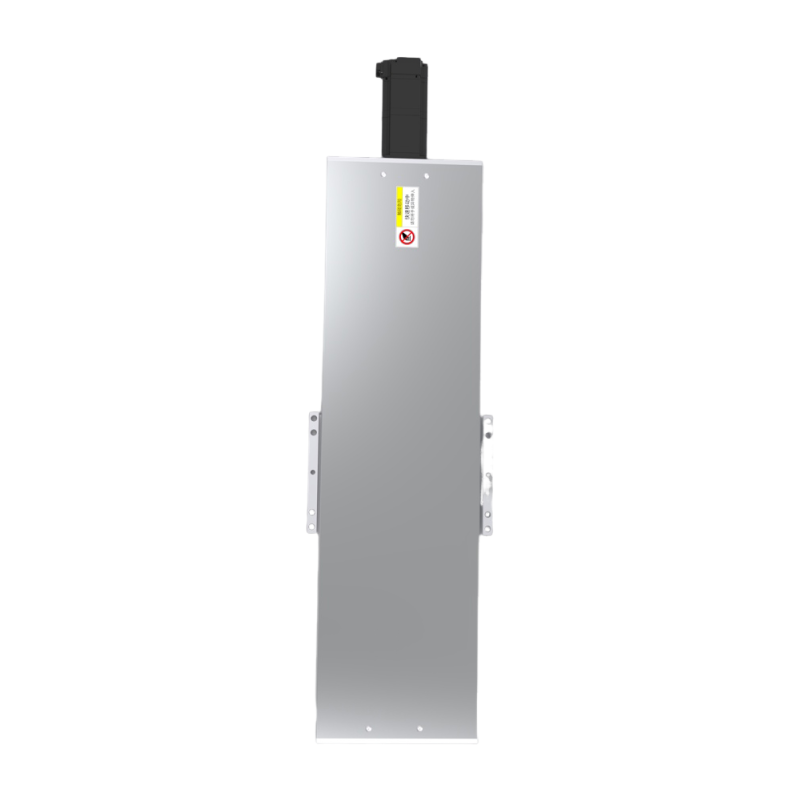

HGS170
Semi-enclosed Screw Module
HGS170 semi-enclosed screw module with repeatability ±0.01 mm, max speed 250~2000 mm/s, payload up to 43~120 kg, stroke 100~1250/50Pitch mm, designed for mid-to-high speed automation.
Specifications
| Performance | |
|---|---|
| Repeatability | ±0.01 mm |
| - | - / - |
| Applications | |
|---|---|
| Laser Processing & Metal Fabrication | High-Power Laser Cutting: Stable control of laser heads for thick steel/titanium plates (1250mm travel), maintaining vibration-free motion for clean cuts in dusty workshops . |
| Material Handling & Logistics | Automated Palletizing: Stacking heavy cargo (up to 120kg) in warehouses, optimized for high-speed conveyor integration and debris-prone factory floors . |
| Precision Testing & Heavy Metrology | CMM Inspection Systems: Full-coverage measurement of large industrial parts (e.g., molds, turbine blades) with 1250mm travel and ± 0.01mm accuracy . |
| Additive Manufacturing & 3D Printing | Large-Format Industrial 3D Printers: Z-axis stability for printing aerospace/automotive prototypes, supporting 120kg payloads and long-stroke precision |
Technical Downloads
Customization
Custom solutions based on speed and load requirements
Anti-rust treatment, high/low temperature, explosion-proof and vacuum compatibility
Bellows dust covers with expandable protection accessories
Multi-axis synchronization and custom program development
Request a Quote
