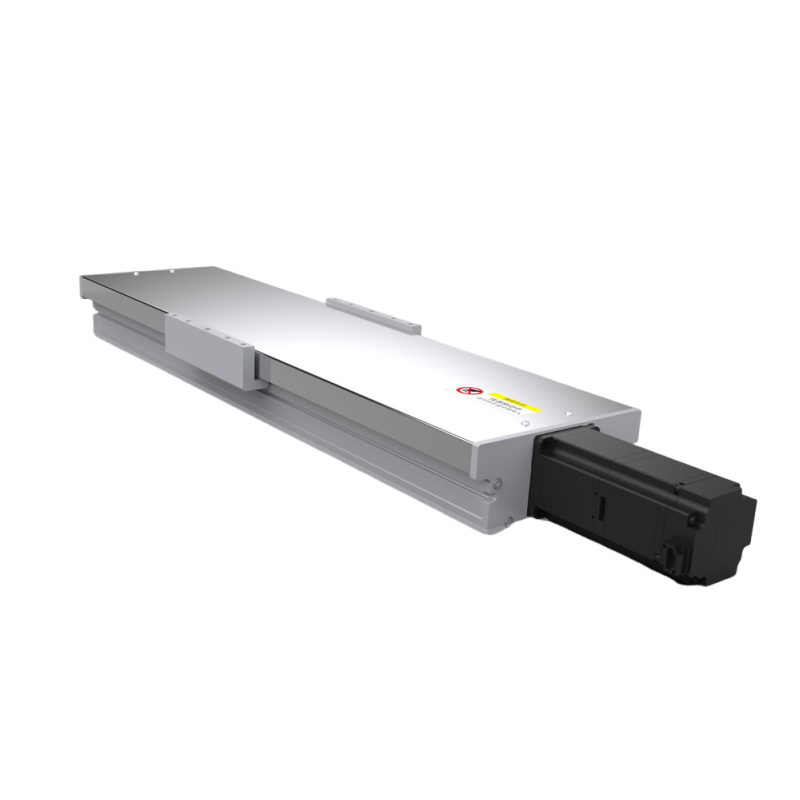

HGS140
Semi-enclosed Screw Module
HGS140 semi-enclosed screw module with repeatability ±0.01/300 mm, max speed 250~1600 mm/s, payload up to 30~110 kg, stroke 100~1050/50Pitch mm, designed for mid-to-high speed automation.
Specifications
| Performance | |
|---|---|
| Repeatability | ±0.01/300 mm |
| - | - / - / - |
| Applications | |
|---|---|
| Heavy Industrial Automation & Robotics | CNC Machine Tools: Precision movement of cutting tools or workpieces (e.g., automotive frames, aerospace components) under 110kg loads, ensuring ± 0.01mm accuracy for milling, drilling, and welding tasks . |
| Laser Processing & Metalworking | High-Power Laser Cutting: Stable control of laser heads for thick steel/titanium plates, maintaining vibration-free motion and edge quality in dusty workshops . |
| Material Handling & Logistics Automation | Palletizing Systems: Automated stacking of heavy cargo (up to 110kg) in warehouses, optimized for high-speed sorting and conveyor integration . |
| Medical & Imaging Equipment | CT/MRI Scanning Tables: Smooth sliding mechanism for patient positioning under 33kg vertical loads, critical for diagnostic imaging clarity and reliability . |
| Precision Testing & Metrology | CMM Inspection Systems: Heavy-part measurement (e.g., turbine blades, molds) with 1050mm travel range and ± 0.01mm accuracy for aerospace/automotive QA . |
Technical Downloads
Customization
Custom solutions based on speed and load requirements
Anti-rust treatment, high/low temperature, explosion-proof and vacuum compatibility
Bellows dust covers with expandable protection accessories
Multi-axis synchronization and custom program development
Request a Quote
Related Products

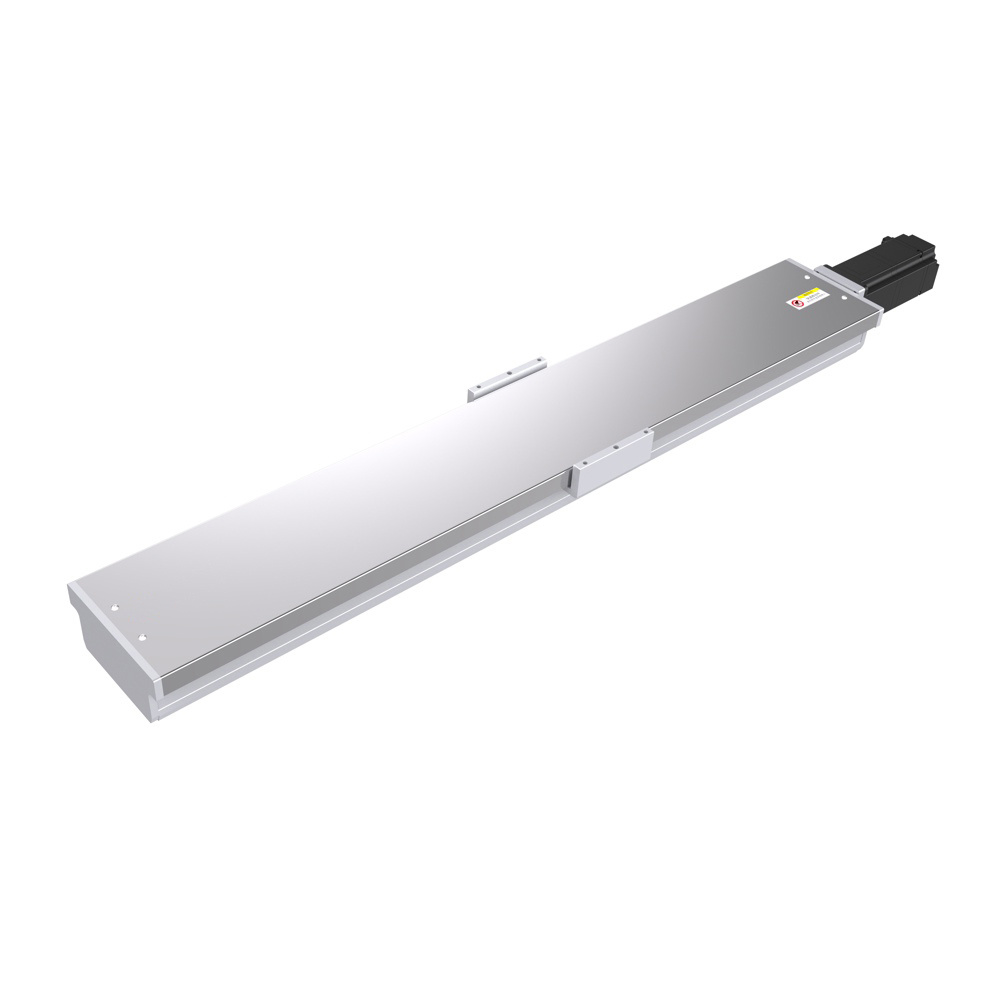

HGS100Semi-enclosed Screw Module
HGS100 semi-enclosed screw module with repeatability ±0.01 mm, max speed 250~1600 mm/s, payload up to 5~50 kg, stroke 100~1050/50Pitch mm, designed for mid-to-high speed automation.

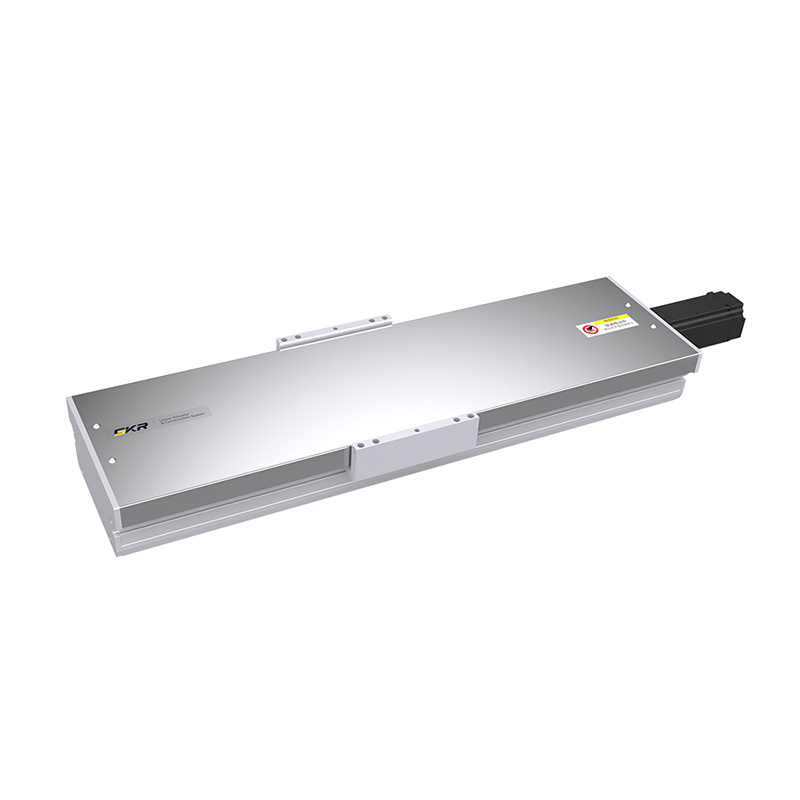

HGS170Semi-enclosed Screw Module
