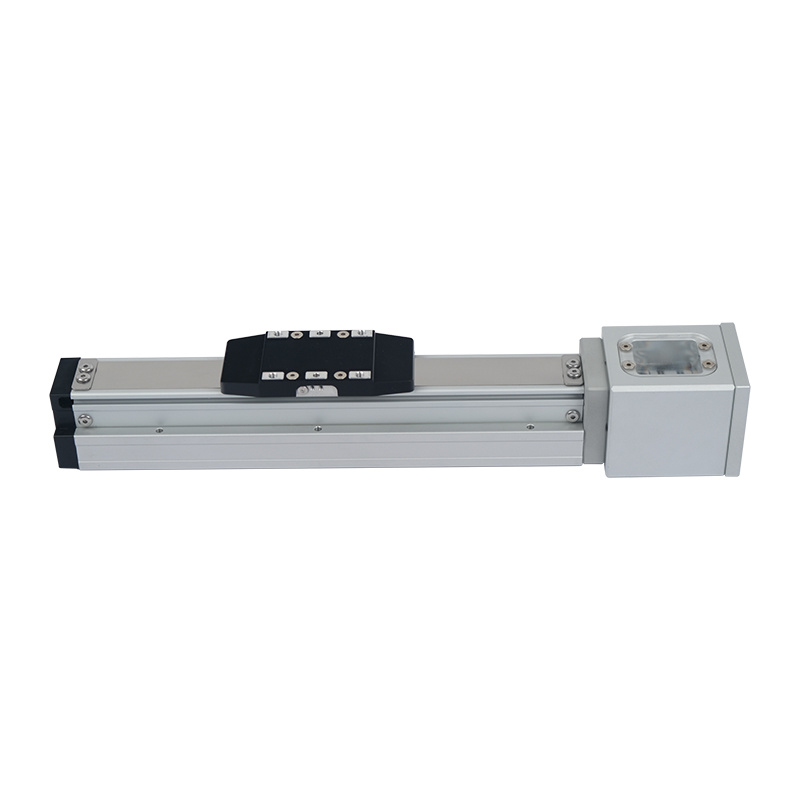

HPS40
Rail-embedded Linear Module
HPS40 rail-embedded linear module with repeatability ±0.02/300 mm, max speed 250~500 mm/s, payload up to 7~25 kg, stroke 50~500/50Pitch mm, designed for space-limited and gantry structures.
Specifications
| Performance | |
|---|---|
| Repeatability | ±0.02/300 mm |
| Applications | |
|---|---|
| Medical & Laboratory Instrumentation | Microscopy & Imaging: Precision stage movement for slide scanning in pathology and cell analysis, critical for diagnostic clarity . |
| Optics & Laser Systems | Laser Micromachining: Cutting/drilling of delicate materials (e.g., medical stents, sensors) with sub-micron stability . |
| Compact Robotics & 3D Printing | Desktop 3D Printers: Z-axis control for high-resolution printing of detailed prototypes and dental/medical models . |
| Precision Metrology & Testing | Micro-Hardness Testers: Accurate probe positioning for material stress analysis under 25kg loads . |
Technical Downloads
Customization
Custom solutions based on speed and load requirements
Anti-rust treatment, high/low temperature, explosion-proof and vacuum compatibility
Bellows dust covers with expandable protection accessories
Multi-axis synchronization and custom program development
Request a Quote
