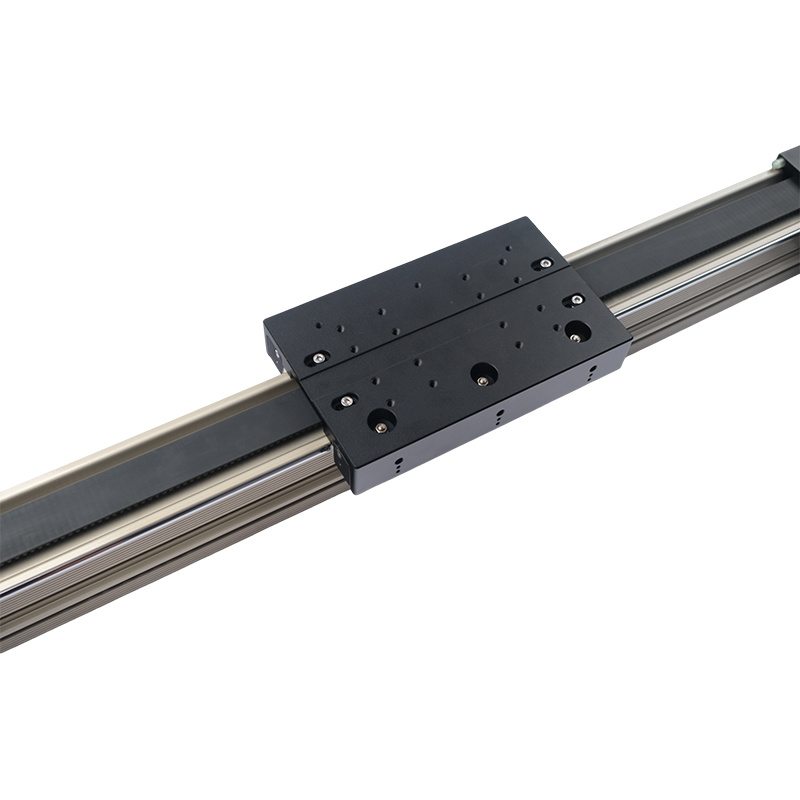

HFB80
Twin-belt Linear Module
HFB80 twin-belt linear module with repeatability ±0.05/300 mm, max speed 2000 mm/s, payload up to 50 kg, stroke 100~6000/100Pitch mm, designed for light-load high-speed reciprocation.
Specifications
| Performance | |
|---|---|
| Repeatability | ±0.05/300 mm |
| Applications | |
|---|---|
| High-Speed Packaging & Material Handling | Automated Palletizing Systems: Rapid stacking of boxes, cartons, or industrial components ( ≤ 50kg) across 6-meter conveyors, leveraging stepper motor efficiency and ± 0.05mm accuracy for seamless integration in e-commerce logistics or FMCG plants . |
| Industrial Automation & CNC Equipment | CNC Tool Changers & Gantries: Long-reach tool swapping in milling/routing machines with 50kg payload support, optimizing machining efficiency and precision . |
| Material Handling & Logistics Automation | Warehouse Sorting Systems: High-speed diverting of heavy parcels or automotive parts ( ≤ 50kg) in distribution centers, utilizing 6-meter linear transfers and 60-stepper responsiveness . |
| Medical & Heavy-Duty Equipment | Lab Automation Platforms: Precise positioning of diagnostic instruments or sample racks in analyzers, leveraging low-vibration motion for contamination-sensitive processes . |
Technical Downloads
Customization
Custom solutions based on speed and load requirements
Anti-rust treatment, high/low temperature, explosion-proof and vacuum compatibility
Bellows dust covers with expandable protection accessories
Multi-axis synchronization and custom program development
Request a Quote
