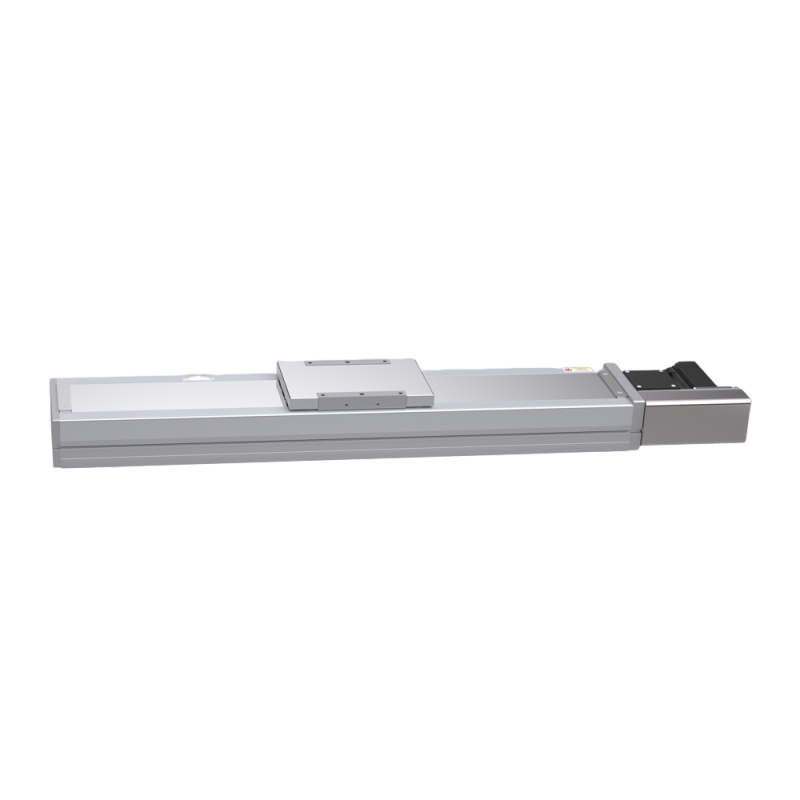

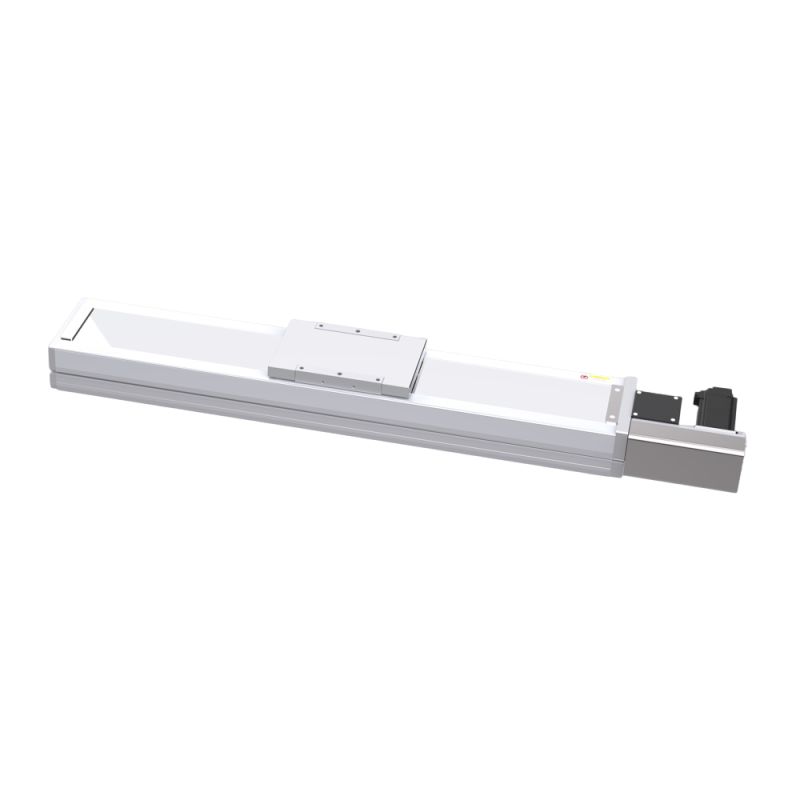

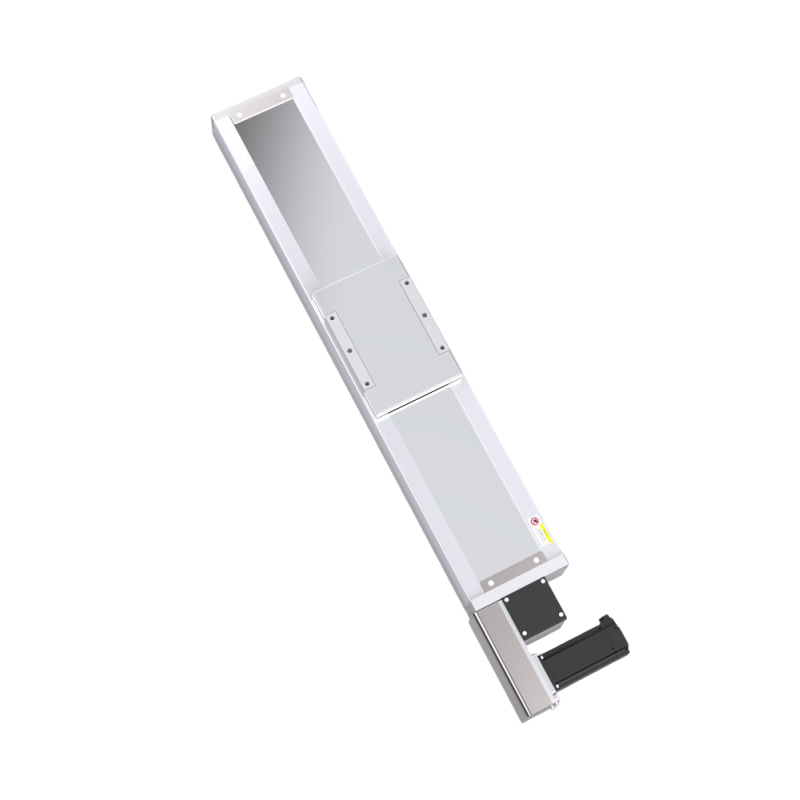

HCB170
Belt-driven Linear Module
HCB170 belt-driven linear module with repeatability ±0.04 mm, max speed 2000 mm/s, payload up to 65 kg, stroke 100~3050/50Pitch mm, designed for long-stroke high-speed handling.
Specifications
| Performance | |
|---|---|
| Repeatability | ±0.04 mm |
Technical Downloads
Customization
Custom solutions based on speed and load requirements
Anti-rust treatment, high/low temperature, explosion-proof and vacuum compatibility
Bellows dust covers with expandable protection accessories
Multi-axis synchronization and custom program development
Request a Quote
